全電動式折り曲げ機 eMOB Serie

パイプ用横型CNC

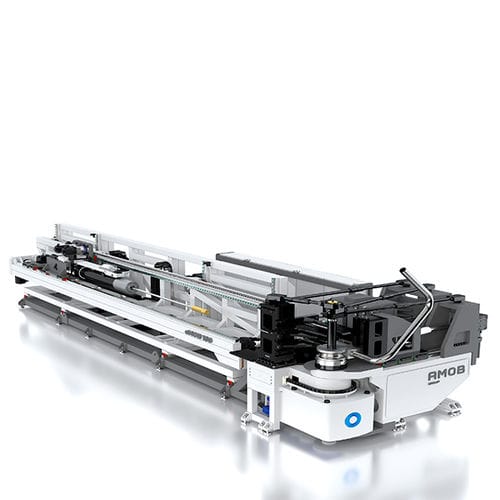

Fully Electric CNC Tube Benders, the eMOB series features state-of-the-art bending technology, processing tubes from 5mm up to 225mm OD. Our fully electric CNC tube bending machines can bend fixed and variable radii within the same cycle, special sections, have multi-stack up to 8 tools at the same time and can perform bend-on-bend parts. High-quality appearance and minimum ovality even on small radius-to-diameter ratios. This series allows bending round or special section tubes with multiple radii, and has a left or right bending direction. Amongst other features it incorporates automatic spring-back compensation, as well as in-cycle correction, stores tooling configuration and positions, runs anti-collision, and interpolates all axes. Welding detection, punching/cutting mechanisms, and integrated loading/unloading systems are also available. These machines are perfect if you are looking for large bending capacity. The carriage booster positioner and the high structural rigidity of the bending head allow to achieve a CLR (centerline radius) < of 1xD (tube diameter) and helps to reduce the marks caused by the clamp.
