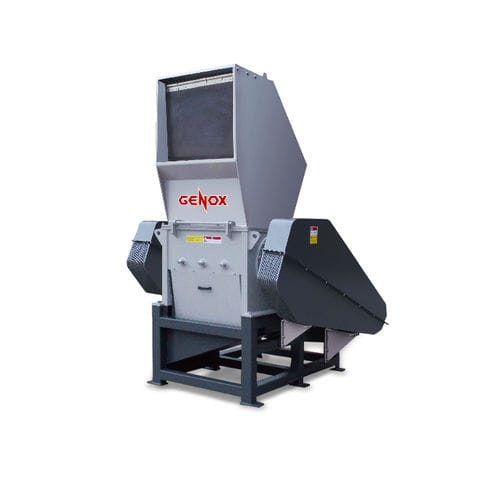

ロ-タ-造粒機 GMC600~GMC1000
プラスチック廃棄物用プラスチック用高せん断性

ロ-タ-造粒機
ロ-タ-造粒機
お気に入りに追加する
商品比較に追加する


特徴

タイプ
ロ-タ-
応用
プラスチック廃棄物用, プラスチック用
その他の特徴
高せん断性

詳細

GMC Heavy Duty Granulators are designed for high throughput size reduction of larger sized products in a single pass. These machines are specifically designed for treating plastic film or PP big bag material of high contamination.Incorporating various different methods of wear protection such as replaceable wear plates and resistant surface coatings, the GMC machines are well suited to processing abrasive, contaminated materials such as glass filled plastics and dirty films containing sands. Typical Applications Include: Plastics – Mouldings, Profiles, Films etc. Rubber – Tire Rubber, Relaim Rubber Products etc. Paper & Cardboard – Confidential Documents, Production Waste, Packaging Materials etc. Copper Cable – Household, Telecoms and Industrial Cables including S.W.A. Textiles – Carpet (Rolls & Tiles) etc. Foam – Production Waste etc. Model: GMC600 Dimension (L x W x H) (mm): 2165 × 1780 × 3090 Hopper Opening (L x H) (mm):760 × 615 Rotation Diameter (mm):Φ520 Operation Length (mm):800 Rotation Speed (RPM):520 Number of Rotor Knives:8 Number of Counter Knives:2 Main Drive (kW):55 Weight(kg):5580 Model: GMC1000 Dimension (L x W x H) (mm): 2165 × 1980 × 3090 Hopper Opening (L x H) (mm):950 × 810 Rotation Diameter (mm):Φ520 Operation Length (mm):1000 Rotation Speed (RPM):520 Number of Rotor Knives:8 Number of Counter Knives:4 Main Drive (kW):75 Weight(kg):6180
