IP66電話 KNZD-87

トンネル地下採鉱用マリン用

Product information
Model: KNZD-87
Size: 350*400*163.2(mm)
Material: (not specified)

Telephone Description

• Full duplex communication.
• Supports access to two-wire/twisted pair slaves: 2/4/8/16 units (optional).
• Supports fiber self-healing ring network access.
• Adopts corrosion-resistant and vandal-resistant cold-rolled steel waterproof and dustproof casing to extend the product life cycle, improve product reliability and stability, and prevent vandalism and tampering of hardware.
• Wall-mounted, easy to install.
• Waterproof and dustproof grade IP66.
• With digital dialing keypad.
• 3 button programmable phone, support hotline dialing.
• 2 customized buttons (optional), support volume adjustment.
• Magnetic reed hook-switch.
• Heavy duty handset with hearing aid compatible receiver, noise canceling microphone.
• Handset with industrial strong armored cable.
• Silicon keypad keep waterproof and dusty proof.
• DC input over-voltage over-current protection and RJ45 surge protection.
• Temperature range from -40 degree to +70 degree.
• Support echo cancellation.
• Remote software upgrade, configuration and monitoring.
• Optional 7 minutes limited call (upon buyer's requirement).
• Powder coated in UV stabilized polyester finish, defaulted color yellow.
• Application: Pipeline corridor, power, tunnel, metro, railway, light rail, highway, steel plant, ship, offshore, mine, power plant, bridge, etc.

Detailed images / diagrams

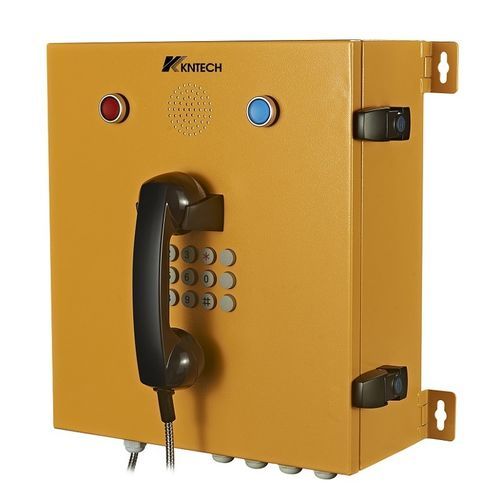

The page includes size and specification diagrams and detailed product views (images available on the product page).

Caractéristiques / spécifications techniques

• Model: KNZD-87
• Size (mm): 350 x 400 x 163.2
• Enclosure: corrosion-resistant, vandal-resistant cold-rolled steel, powder coated with UV stabilized polyester finish (default color: yellow)
• Mounting: Wall-mounted
• Ingress protection: IP66
• Operating temperature: -40°C to +70°C
• Communication: Full duplex; supports echo cancellation
• Network: Fiber self-healing ring network support
• Slave connection: Supports 2/4/8/16 two-wire/twisted pair slaves (optional)
• Keypad: Digital dialing; silicon keypad for waterproof/dustproof
• Programmable: 3 programmable buttons (hotline); 2 additional customized buttons optional
• Handset: Heavy-duty handset with hearing-aid compatible receiver, noise-canceling microphone, industrial armored cable
• Hook switch: Magnetic reed
• Protection: DC input over-voltage & over-current protection; RJ45 surge protection
• Maintenance: Remote software upgrade, configuration and monitoring supported
• Optional features: 7-minute limited call (buyer requirement)
• Typical applications: tunnels, metros, railways, highways, industrial plants, offshore, mines, bridges, pipeline corridors, power plants
