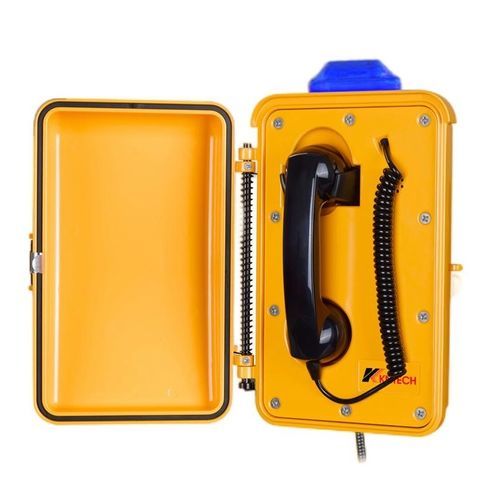

アナログ電話 KNSP-03-D23

IPPoELAN

Product name
Blue Light Stations

Model
KNSP-03-D23

Overview
Blue light station with alarm can be placed in outdoor and industrial work areas with columns. Industrial-grade blue light station suitable for industrial or hazardous areas. It is waterproof, moisture-proof, corrosion-resistant and impact resistant.

Features

• Robust aluminium alloy die-cast body, vandal & tamper-resistant hardware.
• Waterproof rating IP66 dust proof.
• With line powered blue indication lamp.
• Noise canceling microphone; filters out train/car noise for clearer calls. Without keypad, supports hotline setting and supports scroll dialing.
• Magnetic reed hook-switch.
• DC input overvoltage and overcurrent protection and RJ45 surge protection.
• Heavy duty handset with hearing aid compatible (HAC) receiver.
• Handset with industrial strong curly cord.
• Door cover: self-orienting and good self-closing, convenient for use.
• Operating temperature range: -40°C to +70°C.
• Supports echo cancellation.
• Supports remote software upgrade, configuration and monitoring.
• Powder coated in UV stabilized polyester finish.
• Typical applications: tunnel, metro, railway, LRT, speedway, marine, ship, offshore, mine, power plant, bridge, etc.

Order information (table)
Model number | Power Supply | Item Number
KNSP-03-IP-Y_AD | DC12V 1A | SP0030052
KNSP-03-IP-Y_P | POE | SP0030022
KNSP-03-IP-Y_ADP | DC12V 1A + POE | SP0030092
*AD = Adapter UL (Input: AC110~240V, Output: DC12V 1A); *P = POE

Certifications
Australian communications: AS/CA S004
Australian equipment safety: AS/NZS 60950.1:2015
RCM: AS/NZS CISPR 32
EMC: EN55032, EN55024, EN61000-3-2

Installation / Dimensions
Unit size: 320 * 205 * 120 mm
Unit net weight: 4.86 KG
Packing: 1 pcs packing box size: 439 * 277 * 191 mm, N.W: 5.8 KG
6 pcs in 1 outer carton box size: 730 * 390 * 340 mm, N.W: 36.5 KG

System
The blue light station is integrated into industrial telephone systems as an emergency alarm and warning device for use in chemical industry and nuclear power generation areas.

Application
Outdoor or industrial emergency/communication stations; suitable for tunnels, railways, metro/LRT, highways, marine/offshore, mines, power plants and bridges.

Detailed pictures
Multiple-angle images showing lamp, housing, mounting and installation variants.

Pdf documents
Analogue and VoIP product documentation available for model KNSP-03-D23 (product datasheets and wiring/installation guides).

Caractéristiques / spécifications techniques

• Protocol: VoIP SIP 2.0
• DTMF dialing support
• Audio codecs: G.711, G.723, G.726, G.729
• MTBF: 100000 hours; MTTR: 2 hours
• Network: 10/100 BaseTX Ethernet, RJ45
• Communication: Full duplex 2-way
• IP Protocols: IPv4, TCP, UDP, RTP, DHCP, SIP
• Call control signaling: SIP, SIP Info (DTMF), RFC 2833 (DTMF)
• LAN: 1 x LAN with PoE (IEEE 802.3af)
• Local power: 12 V DC (Idle 2W, Max 10W)
• Control: IEEE 802.1x, STP (IEEE 802.1d); RSTP (IEEE 802.1d-2004)
• Auxiliary contacts: optional
• Programming/configuration: Non-volatile flash memory; configuration through Web GUI
• Outputs: 1 Aux Output, dry contact (rated load: 0.3 A at 125 VAC; 1 A at 30 VDC)
• Rated carry current / Max switching current: 1 A
• Echo cancellation: ITU-T G.167 / G.168
