天井拡声器 KNL9-A-6W

防火サービス業

Overview

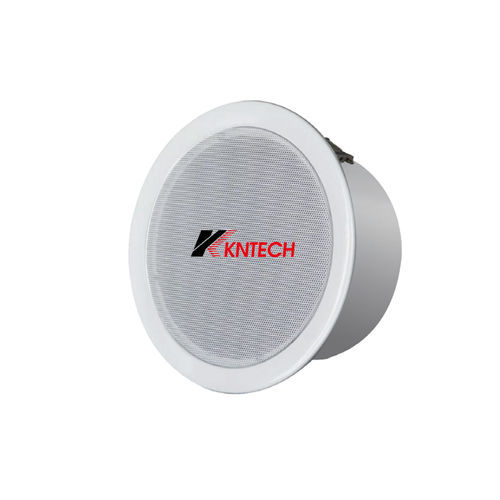

Model: KNL9-A-6W
Size: 197*165*98mm
Material: Metal & Fire Rated Metal Rear Cover

Key Features
The loudspeaker incorporates a single 12 cm (5") full range cone-type transducer with a smooth frequency response of 80 Hz to 20 kHz measured on axis.
The loudspeaker produces a Sound Pressure Level (SPL) of 90 dB on axis at 1 meter with a power input of 1 watt and is capable of producing 6 watts (for 100V Line) and 3 watts (for 70V Line) of power.
The loudspeaker is fitted with a factory mounted transformer with easy selectable power tappings. Push-in-type connectors make cable connection quick and easy and allow bridge wiring when necessary.

Power Tappings

• 100V Line: 6W, 3W, 1.5W, 0.8W
• 70V Line: 3W, 1.5W, 0.8W, 0.4W

Application

• Conference rooms
• Cafes
• Churches
• Background music
• Entertainment venues
• Home theaters
• Etc.

Products Dimensions
Size image available on product page.

Detailed Views
Detail and product pictures available on product page.

Caractéristiques / Spécifications techniques

• Model: KNL9-A-6W
• Driver: 12 cm (5") full range cone-type transducer
• Frequency response: 80 Hz – 20 kHz (on axis)
• SPL: 90 dB @ 1 m with 1 W input
• Power handling / line options: capable of 6 W (100V line) and 3 W (70V line)
• Transformer tappings (100V): 6W, 3W, 1.5W, 0.8W
• Transformer tappings (70V): 3W, 1.5W, 0.8W, 0.4W
• Connectors: Push-in-type connectors allowing bridge wiring
• Size (HxWxD): 197 x 165 x 98 mm
• Material: Metal with fire-rated metal rear cover
