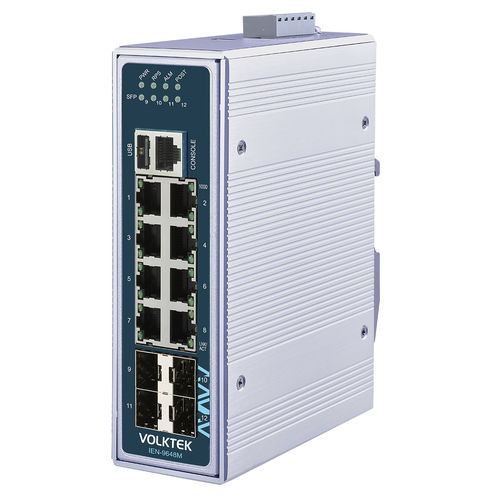

DNVイーサネットスイッチ IEN-9648M

管理型12 ポートギガビット

Product FeaturesManaged switch for marine industrial applications with 8 x 10/100/1000 RJ45 ports and 4 x GbE SFP L2+.Equipped with 1 console port for command line interface and 1 USB port, supporting firmware upgrades, secure configuration, and log file downloads.Topology map for network monitoring.High interoperability with third-party devices, compatible with both legacy and advanced industrial devices.Storm control, flow control, and QoS optimize network performance with sufficient bandwidth.Compliant with DNV GL international marine standards, providing reliability and safety for harsh marine environments.Operating temperature range: -40°C to 75°C (-40°F to 167°F), IP30 aluminum housing.* DNV Class D maximum operating temperature: -25°C to 70°C (-13°F to 158°F)* Supports 24VDC rated voltage compliant with DNV standards.Product OverviewThe Volktek IEN-9648M managed industrial switch features 8 ports of 10/100/1000Base-T and 4 Gigabit SFP slots. Certified by DNV (Det Norske Veritas), this industrial switch is suitable for harsh, corrosion-resistant environments in marine and offshore applications, offering all standard features of industrial managed switches. Designed with robust components and a sturdy case, it operates over a wide temperature range from -40°C to 75°C and is highly resistant to vibration and shock.IEN-9648M is a Layer 2+ switch, providing additional features for comprehensive management such as RMON, SNMP v1/v2c/v3, SNTP, millisecond-level network recovery, advanced network cybersecurity, and traffic control.FunctionsRobust Switch PerformanceThe Industrial Ethernet Network-9648M features IP30 aluminum case protection, surge and ESD protection. SFP ports support 1000Mbps for high-bandwidth transmission. Hardware faults are quickly responded to via automatic alerts by email and relay output.Redundant Power Input SystemThe Industrial Ethernet Network-9648M is equipped with a redundant power system using standard industrial terminal blocks, ensuring uninterrupted operation. If the main power fails, the secondary power activates to provide continuous service, ideal for mission-critical industrial applications.Efficient Network Monitoring and Proactive CapabilitiesSupports SNMP and RMON for efficient traffic management and network analysis. Enables centralized management and remote monitoring of network performance, identifying and resolving connectivity or performance issues, reducing operational costs, and ensuring a healthy network.Bandwidth Management to Prevent Unpredictable Network SituationsComprehensive QoS features guarantee reliable, prioritized service delivery. Bandwidth management allocates bandwidth based on application priority, allowing administrators to control allocation, prevent errors, and optimize usage. Ideal for industrial surveillance applications requiring reliable, uninterrupted transmission.Redundant Ring and Fast Recovery for Surveillance SystemsFeatures Xpress Ring for rapid recovery from link failures (<10ms), preventing communication interruptions in IP surveillance systems and handling heavy video/data traffic.SpecificationsStandards: IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX), IEEE 802.3ab (1000BASE-T), IEEE 802.3z (1000BASE-SX/LX), IEEE 802.3 (Nway Auto-negotiation), IEEE 802.3x (Flow Control), IEEE 802.3ad (Link Aggregation), IEEE 802.3az (Energy Efficient Ethernet), IEEE 802.1AB (LLDP), IEEE 802.1ad (QinQ), IEEE 802.1D (STP), IEEE 802.1w (RSTP), IEEE 802.1s (MSTP), IEEE 802.1p (Class of Service), IEEE 802.1Q (VLAN Tagging), IEEE 802.1X (Port Authentication), IEEE 1588v2 (PTP)Interface: 8 x 10/100/1000BASE-T (PoE RJ45), 4 x GbE SFP Slots, 1 x RJ45 Console Port, 1 x USB Port, DIP Switch (Primary/Redundant Power Voltage Drop, Alarm setting), LED Panel (PWR, RPS, ALM, POST, PoE, 1000, LNK/ACT)Power: Input Voltage: Primary/Redundant 12-48V DC, Connection: Terminal Block, Power Consumption: System 18W, Alarm Relay: One relay output, 1A @ 24V DCMechanical and Environment: Housing: Aluminum (IP30 Protection), Mounting: DIN-Rail, Operating Temperature: -40°C~75°C (-40°F~167°F), Storage Temperature: -40°C~85°C (-40°F~185°F), Operating/Storage Humidity: 5 to 95% RH (non-condensing), Weight: 955 g (2.1 lb), Dimensions: 50 x 160 x 120 mm (1.97 x 6.3 x 4.72 in)ModelDescriptionIEN-9648ML2+ Managed 8 x 10/100/1000 RJ45 & 4 x GbE SFP Industrial Switch, DNV Marine ApprovalDNV GL certified for marine applicationsWide operating temperature rangeRedundant power inputRobust aluminum housing (IP30)Comprehensive Layer 2+ management featuresSupports SNMP, RMON, QoS, VLAN, Link Aggregation, and moreDIN-rail mountingPower consumption: 18WWeight: 955gDimensions: 50 x 160 x 120 mm
