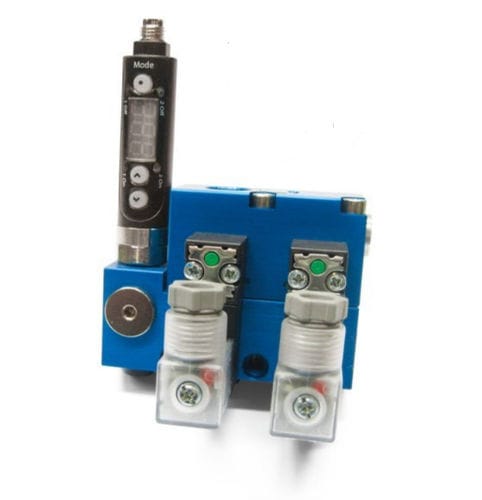

潤滑ベンチュリエジェクター Vacumanager VM IO-Link

多段調整可能コンパクト

Overview
VACUMANAGER VM series units are integrated electro-pneumatic circuits designed to supply and manage single-stage and multi-stage vacuum generators. VM units house the following in an anodised body/distributor machined from billet aluminium:

• Digital vacuum switch with display (standard), also available on request in a version with IO-Link communication
• Compressed air supply valve
• Blow off valve
• Flow regulator for the blow off valve

Function and benefits
A compact electro-pneumatic control circuit that incorporates all components for the management of vacuum and blow off generation in a handling system equipped with vacuum cups and powered by pneumatic vacuum generators (single-stage or multi-stage). In combination with the Vuototecnica Energy Saving cables, these units limit the consumption of the compressed air supplying the pneumatic vacuum generators to the time strictly necessary to empty the vacuum cups, improving energy efficiency.

Applications

• Handling operations with vacuum cups
• Best suited for products with excellent sealing or with micro-porosity such as metal sheets, glass, wood or plastic veneered panels
• Recommended for use with Octopus gripping systems equipped with pneumatic vacuum generators and shut-off valves

Product codes
VM01 VM03 VM01IO VM03IO 0015202 0015157 0007424 001220 001221 007304 0015447 123010

caractéristiques / spécifications techniques

• Series: VM series
• Integrated components: digital vacuum switch (with display), compressed air supply valve, blow off valve, flow regulator
• Body/distributor: anodised billet aluminium
• Compatible with: single-stage and multi-stage pneumatic vacuum generators
• Optional: version with IO-Link communication available
• Energy saving: optimised when used with Vuototecnica Energy Saving cables
• Typical applications: vacuum cup handling, Octopus systems, handling of materials with micro-porosity or excellent sealing
