真空発電機 MSVE series

独立型マルチファンクションディスプレイ付

Overview
Category page presenting vacuum generators and pneumatic pumpsets. The products exploit Venturi and jet-flow principles to generate vacuum using compressed air. Applications include vacuum cups control, gripping and handling of non-porous or slightly porous objects, high-frequency gripping/release operations, conveyors, packaging, automotive, robotics and modular/multi-point vacuum systems. Many units include silencers, ejectors, vacuum switches, energy saving devices and optional accessories for improved installation and noise control.

Tables / Charts

• Quantity of air sucked by generators at different vacuum levels (table)
• Vacuum generator evacuation time at different vacuum levels (table)

Single-stage vacuum generators (examples)

• Single-stage vacuum generator 15 01 10, 15 01 10 LP and 15 01 15 LP — Operation based on Venturi principle. Supply in P, vacuum at U, exhaust at R. Optimal supply pressure normally 6 bar; LP variants perform best at <4 bar. Optional high sound suppression silencer on R. Typical use: control vacuum cups for gripping non-porous objects. Construction: anodised aluminium body; brass or aluminium ejectors. Product codes: 150110, 150110LP, 150115LP.
• Single-stage vacuum generator 15 03 10 — Product code: 150310.
• Single-stage vacuum generators 15 05 08 SX and 15 05 10 SX — Increased suction flow rate; optimal supply pressure <4 bar; standard SSX silencer on R; used in automotive sector for slightly porous objects. Product codes: 150508SX, 150510SX.
• Single-stage vacuum generator 15 07 10 SX — Product code: 150710SX.
• Single-stage vacuum generators VG 03, VG 03 LP and VG 05 LP — Supplied for optimal pressures of 4 or 6 bar; available with SSX 3/8" R silencer on exhaust; construction anodised aluminium. Product codes: VG03, VG03LP, VG05LP.
• Single-stage vacuum generators with ejector 15 02 10, 15 02 10 LP and 15 02 15 LP — Internal chamber supplied during cycle for faster disconnect; LP variants operate best <4 bar. Product codes: 150210, 150210LP, 150215LP.
• Single-stage vacuum generator with ejector 15 04 10 — Product code: 150410.
• Single-stage vacuum generator with ejector 15 06 08 SX and 15 06 10 SX — Same features as 15 05 series plus pneumatic ejector, flow regulator for ejection dosing, optimal supply <4 bar, integrated high damping silencer. Product codes: 150608SX, 150610SX.
• Single-stage vacuum generators with ejector FVG 3 and FVG 5 — Designed for very high frequency gripping/release; reduced weight, supply <4 bar, low energy consumption, integrated silencer; pneumatic ejector can be deactivated. Product codes: FVG3, FVG5.

In-line and PVP Series

• In-line single-stage vacuum generator PVP 1 — Distinctive two air/vacuum inline connections on same axis; orthogonal exhaust; reduced dimensions and easy maintenance. Product code: PVP1.
• PVP 05, PVP 2, PVP 3, PVP 2 M / MM variants — Small single-stage PVP generators with various mechanical configurations and threaded connectors to mount cups or holders. Product codes: PVP05, PVP2, PVP3, PVP2M, PVP2MM1, PVP2MM2, PVP2MM3.
• PVP ... SX / SXLP (PVP7SX, PVP14SX, PVP18SX and SXLP variants) — New generation silencer, vacuum gauge standard, optional vacuum switch or pneumatic solenoid valve, stainless steel ejectors and screws. Supply 4-6 bar (SX) and 1-3 bar (SXLP). Suction rates between 8.3 and 18 m3/h.

VACUMANAGER / MSVE / AVG / M / MVG / GVMM Series

• VACUMANAGER VM series — Integrated electro-pneumatic circuits to supply/manage single- and multi-stage vacuum generators. Include digital vacuum switch with display, supply valve, blow off valve, flow regulator for blow off. Energy-saving focus; recommended for Octopus systems. Product codes: VM01, VM03, VM01IO, VM03IO, plus others.

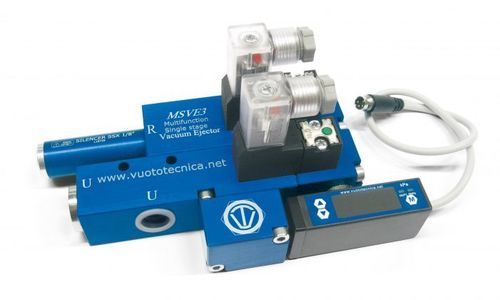

• MSVE series — Single-stage and multi-function vacuum generators with coaxial shutters, single-stage ejectors, low-pressure operation (max 4 bar), very high emptying speed, micro solenoid valves controlling supply and blow off, built-in check valve, digital vacuum switch with display/LEDs, integrated suction filter. Suitable for many materials and robotics. Product examples: MSVE3, MSVE3IO, MSVE5IO, MSVE5.
• AVG series — Designed for automotive sector; mono-block anodised aluminium structure with internal ejectors, servo-controlled slide valve, built-in pneumatic vacuum switch, check valve, suction filter under transparent polycarbonate lid. Energy saving and modular operation.
• Multi-stage series M, MVG, MVG modular families — Multi-stage ejectors deliver high vacuum (up to ~90% / final vacuum ~100 mbar abs. for some multi-stage units) and reduced compressed air consumption compared to single-stage for same capacity. Typical M series codes: M3, M7, M10, M14, M18. MVG and GVMM are multi-function units combining ejectors, solenoid valves, vacuum switches, manifolds and filters in compact anodised aluminium mono-blocks. GVMM modular intermediate MI modules allow stacking multiple vacuum units.

Multi-stage PVP / MDX / MD / MDLP / M... series (higher capacities)

• PVP 12 MX / MXLP, PVP 25 MX / MXLP — Multiple ejector generators offering increased suction flow for same air consumption; supply 4-6 bar (MX) or 1-3 bar (MXLP). Product codes: PVP12MX, PVP12MXLP, PVP25MX, PVP25MXLP.
• PVP 40 M / MLP ÷ PVP 300 M / MLP — Series created for Octopus gripping systems; capacities between ~24 and 320 m3/h; M items supply 4-6 bar, MLP items 1-3 bar; built-in silencers; anodised aluminium construction; optional EPDM/FKM seals and reed valves.
• PVP 140 / 170 / 200 M / MLP and larger PVP 250 / 300 M / MLP, up to PVP 750 MD / MDLP — Modular frames with stainless steel ejectors; flow rates from tens to hundreds m3/h; supply ranges 1–6 bar depending on model; EPDM or FKM seals; silencers built-in; optional energy-saving ES kit and accessories.

Vacuum jet flow generators and conveyor / adjustable vacuum generators

• Vacuum jet (Flow generators) CX series (CX7, CX10, CX13, CX19, CX25, CX38, CX50) — Compressed air blown into ring chamber generates cyclonic effect creating vacuum and high flow. Suitable for powders, granules, metal chips, liquids, extraction of fumes/coolants. No moving parts; available in anodised aluminium and stainless steel.
• Conveyor adjustable vacuum generators / PVR series (PVR25, PVR50, PVR100, PVR200 etc.) — Venturi-based, adjustable ejectors with large flow diameter to vary vacuum/flow without altering supply air vacuum level. Suited to transfer powders, granulates, sawdust, liquid/dry food, and to control vacuum cups where dust/liquids present. Silencers available to reduce noise.
• Conveyor vacuum generator PVR25MS — Rectilinear flow vacuum generator with support for fastening to vacuum cups (suitable for cups from Ø 200 mm); reaches ~-70 kPa, ~10 m3/h at 3 bar; free-flow silencer with safety protection; recommended for dirty gripping surfaces (marble, granite, rusty metal sheets, rough wood).

Cartridge vacuum generators

• PVR cartridge series (PVR1, PVR4, PVR3OT) — Small cartridge vacuum generators for integration into packaging gripping elements. Low pressure operation (1–3 bar typical), vacuums up to -72 kPa (PVR1/PVR4), flow rates 1–4 m3/h; dust/swarf tolerant; standard anodised aluminium or brass/stainless steel variants.

Accessories and components

• Coaxial shutter servo-controlled pneumatic valves and solenoid valves for intercepting compressed air supply to generators; various product codes listed for different sizes and types.
• Silencers (SSX family) — Natural fibre sound absorbing material in anodised aluminium casings; available in multiple lengths and sizes; noise reduction typically -13 to -20 dB(A); working temperature -20 to +100 °C.
• Filters, manifolds, check valves, reed valves, vacuum gauges, digital vacuum switches (including IO-Link variants), energy saving cable sets and ES (Energy Saving System) kits, cable sets and connectors for electro-pneumatic units, screw kits for modular assemblies.

Accessories for pump sets and mini pump sets

• Mini pneumatic pump sets DOP06, DOP10, DOP20 and pneumatic pump sets DOP25, DOP50, DOP100, DOP150, DOP300 — Self-contained vacuum units including welded tank, shut-off valve, pressure regulator with filter and gauge, vacuum generator (various series), pneumatic drive valves, vacuum switches, vacuum gauges, suction filters, condensation drains. Designed to supply fixed or mobile units requiring vacuum without electricity (only compressed air 4–6 bar).

Notes on materials and construction

• Many generators built in anodised aluminium bodies; ejectors can be brass, aluminium or stainless steel depending on model.
• Seals typically EPDM (FKM available on request); reed valves available as standard or on request in different elastomers.

Caractéristiques / spécifications techniques

• Working principles: Venturi principle for ejectors; jet-flow (cyclonic ring) for vacuum jet flow generators.
• Supply pressure ranges: typical optimal 6 bar for many single-stage units; LP models optimized for <4 bar; multi-stage MX/M series often 4–6 bar (MX) or 1–3 bar (MXLP/MLP).
• Maximum vacuum for multi-stage: up to ~90% (approx. 100 mbar abs.) for some multi-stage generators; some MDX specify max -90 kPa.
• Suction flow rates: model-dependent, from ~1–4 m3/h (small cartridges) up to hundreds m3/h (modular PVP MD/MDLP frames and large PVP series).
• Noise reduction: SSX silencers reduce noise typically -13 to -20 dB(A); integrated silencers used on many models.
• Operating temperature ranges for some multi-stage units: -20 to +80 °C (multi-stage) and silencers rated -20 to +100 °C.
• Construction: anodised aluminium mono-blocks or machined distributors; stainless steel ejectors/screws on higher series; brass or aluminium ejectors on others.
• Accessories: digital vacuum switches (display, IO-Link available), pneumatic/electric solenoid valves, coaxial shutter valves, energy saving devices (ES), silencers (SSX family), suction filters, manifolds (Plexiglass or aluminium), check valves and reed valves.
