機械式真空計

ブルドン管デジタル二重スケール

Overview
Category of instruments for measurement, control and adjustment of vacuum and pressure including conversion tables, gauges, switches (pneumatic, electromechanical, digital, IO-Link), regulators, adjustment valves, accessories and sealing kits.

Vacuum and pressure unit conversion table
Vacuum and pressure unit conversion tables and pressure measurement unit conversion factors (absolute values).

Vacuum and pressure gauges
The measurement method is based on the Bourdon spring principle. Section tubes in special copper alloy welded to the threaded pin form a single body. Movement of the free end is amplified by a lever and transmitted to the pointer. Housings and materials vary by model; face and index visible through protective disc. Available with radial or coaxial connectors, built-in or external flange, dry or glycerine filled. Except Ø 40 mm, other models have a double scale dial. All models comply with applicable EU safety and measurement standards.

• Product codes: 090315, 090320, 090325, 090310, 090110, 090116, 090210, 090510, 090516

Vacuum gauge with steel punch
Glycerine bath vacuum gauge equipped with a hardened steel punch to perforate tin cans and food containers and with a silicone vacuum cup to guarantee seal after perforation. Available in standard version and custom versions on request.

• Product code: 090599

Mini pneumatic vacuum switches
Extremely compact switches that give or remove a pneumatic signal when a preset adjustable vacuum level is reached. Pressure differential between set max and signal recovery is not adjustable. Suited for controlling vacuum generators and activating pneumatic valves.

• Product codes: 120130, 120230

Mini electromechanical vacuum switch
Compact switch giving an electric signal at an adjustable vacuum level. Pressure differential (reset hysteresis) is 50–60 mbar (not adjustable). Suited where an electrical signal is needed for safety, cycle start, cup grip checking, etc.

• Product code: 120210

Micro digital vacuum switches
Small, temperature-compensated devices providing precise digital output at a programmable switching point via an adjustment screw. Red LED indicates output status. Hysteresis between set value and reset is 2% (not adjustable). Composed of polycarbonate enclosure, sensor and electronics, with coupler or small aluminium manifold. Rotatable item available; vacuum connection via male or female M5; electrical via 3-connector cable. Suited for dry air and non-corrosive gases.

• Product codes: 120510P, 120510N, 120511P, 120511N

Analogue vacuum switch
Compact, light switches in ABS casing for machine mounting. When calibrated, provide precise measurement values. Adjustment range 0 to -1 bar. Outputs: analogue 1–5 V and configurable digital PNP via Teach-In. Switching point and hysteresis programmable via push buttons; two bi-colour LEDs indicate commutation and error codes. Rotatable display; dual-threaded vacuum connection (G 1/8" male or M5 female). Electrical connection via M8 4-pin plug; PUR cable optional. Suited for dry air and non-corrosive gases and for safety/energy-saving/vacuum adjustment circuits.

• Product codes: 120710

Digital IO-Link vacuum and pressure switches
Robust ABS housing, calibrated and temperature-compensated with integrated display. Two LEDs indicate two independent digital outputs. Switching points and hysteresis (0–100% of set value) programmable; configurable functions include threshold comparison, NO/NC contacts, unit selection, parameter lock, display inversion. Free display rotation. Pneumatic connections: G 1/8" male or M5 female; electrical M8 4-pin (PUR cable optional). IO-Link version identifiable by logo/inscription; enables bidirectional communication, remote parameterization and diagnostics.

• Product codes: 121010, 122511

Digital vacuum switches (parallelepiped form)
Cylindrical-to-parallelepiped shape change while retaining compact ABS enclosure. Calibrated and temperature-compensated; display shows detected values. Two LED indicators and independent switching outputs. Switching points and hysteresis programmable. Vacuum connections G 1/8" male or M5 female; electrical push-in with M8-4 pin jack or integrated PUR cable variant. Adjustment range 0 to -1 bar; variants with analogue 1–5 V output and two PNP outputs exist. Suited for dry air and non-corrosive gases and for signalling, cycle control, cup gripping and energy saving.

• Product codes: 123010A, 123010

Digital vacuum and pressure switches
Compact ABS enclosure; calibrated and temperature-compensated with display. Two LEDs indicate two digital outputs; outputs independent. Programmable functions: set points, hysteresis, comparisons, NO/NC, units, locking. Vacuum connections via female G 1/8"; electrical via 4-conductor cable. Recommended for measurement and control of dry air and non-corrosive gases and for safety and cycle-control applications.

• Product codes: 122010P, 123510P

Digital vacuum and pressure switches with two-colour display
Robust ABS container with two-colour main display (red/green) and secondary display for set values. Two indicators for outlets 1 and 2 for digital and analogue outputs. Programmable switching points and hysteresis; other functions configurable. Vacuum: male G 1/8" or female M5; electric connection via removable rapid-installation data cable provided as standard. Suited for dry air and non-corrosive gases.

• Product codes: 124010, 124012, 124020

Accessories for analogue and digital vacuum and pressure switches
Available accessories include cables with axial or radial connector, wall-mounting kit, fixing kit and other mounting/fitting items.

• Product codes: 001220, 001221, 001222, 001230, 001231, 001232, 001240, 001241, 001242, 001243

Vacuum adjustment valves
Valves that, when reaching a pre-calibrated vacuum degree, introduce atmospheric air into the circuit to prevent increase and keep vacuum constant. Used as regulators on circuits with a single vacuum pump or as safety valves on tanks or vacuum cup systems. Vacuum level adjusted by rotating knurled bush; fine thread enables accurate calibration. Operating temperature range -20 °C to +200 °C.

• Product codes: 040110, 040110INOX, 040210, 040210INOX, 040310, 040310INOX, 040410, 040410INOX, 040510, 040510INOX

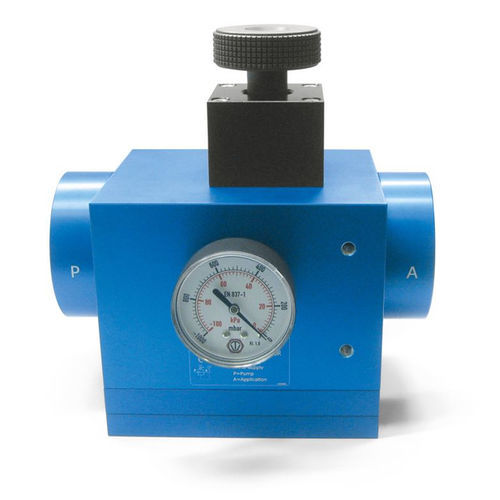

Vacuum regulators
Devices that maintain vacuum constant at preset secondary vacuum regardless of source flow and primary vacuum fluctuations. Operate by membrane-piston using pressure differential between secondary vacuum and atmosphere. Unlike adjustment valves, regulators do not release air into circuit, allowing multiple grip points at different vacuum degrees from a single source. Vacuum level adjusted via knurled thumb screw.
Technical features

• Operation: membrane-piston regulator
• Adjustable operating pressure: from 800 to 1 mbar abs.
• Flow rate: from 2 to 160 m3/h (product-dependent)
• Room temperature: -10 to +80 °C
• Installation position: any

Regulators for rough vacuum levels
Similar operation but minimum adjustable vacuum close to atmospheric pressure. Technical features: adjustable operating pressure 980 to 1 mbar abs; capacity 20 to 160 m3/h; room temperature -10 to +80 °C.

• Product codes (regulators series): 110110, 110210, 110310, 110410, 110510, 110610, 110350, 110550, 110650, 110811, 110911

Vacuum regulators with pneumatic adjustment
Adjustment performed by pneumatic cylinder compressed air supply rather than manual screw. Supply pressure ranges and adjustable working pressure depend on model series. Useful when remote pneumatic control of vacuum setpoint is required.

• Supply pressure examples: from 0 to 3 bar or 0 to 5 bar depending on model
• Adjustable working pressure examples: from 800 to 1 mbar abs or 980 to 1 mbar abs depending on model
• Flow rates and temperature ranges similar to manual regulators

Diagrams referring to servo-control supply pressure
Diagrams and tables showing indicative values of vacuum level vs servo-control supply pressure. Values are indicative and depend on atmospheric pressure, vacuum source flow rate and compressed air quality.

Sealing kit for vacuum reducers
Sets of sealing components available in multiple sizes and codes for maintenance and replacement of seals.

• Product codes: 0011113, 0011114, 0011115, 0011116, 0011117, 0011118, 0011119, 0011120, 0011121, 0011122, 0011123, 0011124, 0011125, 0011126, 0011127, 0011128, 0011129, 0011130

Caractéristiques / spécifications techniques

• Measurement principle (gauges): Bourdon spring (section tube welded to threaded pin)
• Gauge options: radial/coaxial connectors, built-in/external flange, dry or glycerine-filled, double scale dials (except Ø 40 mm)
• Vacuum switch types: pneumatic, electromechanical, micro digital, analogue, digital, IO-Link
• Analogue outputs: 1–5 V available on certain models; digital outputs: PNP commonly used; teach-in configurable on several models
• Vacuum connection types: male G 1/8" or female M5 (double threaded on many models)
• Electrical connection types: M8 4-pin threaded plug or integrated PUR cable; push-in connectors on some models
• Adjustment ranges: typical from 0 to -1 bar (device-dependent); hysteresis programmable 0–100% on digital devices; micro-digital hysteresis ~2% of set value
• Operating temperatures: typical ranges from -20 °C up to +200 °C for valves; regulators and switches usually -10 °C to +80 °C
• Regulator operation: membrane-piston; maintains secondary vacuum regardless of primary vacuum variations
• Materials: ABS housings for switches, polycarbonate enclosures for micro devices, special copper alloy for Bourdon tubes, stainless steel options for valves (INOX variants)
