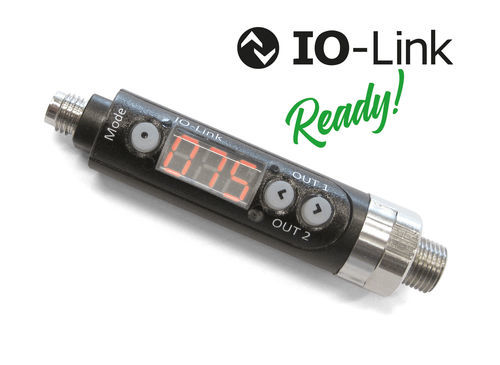

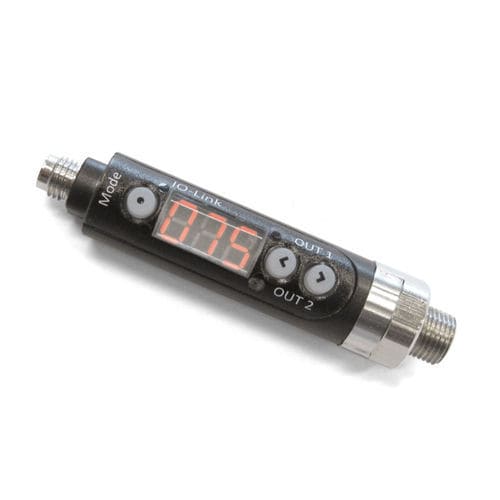

IO-Linkインターフェース付き圧力センサ/真空センサ 121010電子式真空NO
お気に入りに追加する
商品比較に追加する
特徴
- 技術
- 電子式
- 圧力の種類
- 真空
- 接点形式
- NC, NO, IO-Linkインターフェース付き
- 電気接続
- M8コネクタ
- 接続部
- G 1/8
- 流体
- ガス用, 空気用
- 材質
- プラスチック製
- 応用
- 空気圧式用
- その他の特徴
- デジタル, コンパクト, ディスプレイ付き, デジタル ディスプレイ付, プログラム可能, LEDインジケーター付き, 温度補償型, スマート
詳細
Product overview
Product codes
Caractéristiques / spécifications techniques
- Physical characteristics: Robust ABS housing, compact and lightweight; mountable on machinery and near the point of use.
- Precision and display: Calibrated and temperature-compensated; integrated display shows values, making an external vacuum gauge unnecessary.
- Signal indication: Two LEDs indicate the status of the two independent digital output signals.
- Programming: Switching points and hysteresis (0–100% of set value) programmable via buttons. Also configurable: threshold comparison, NO/NC contacts, unit selection, parameter lock, and display inversion.
- Display rotation: Free rotation to orient the display without disconnecting pneumatic connections.
- Connections: Pneumatic with double-threaded G 1/8 inch male or M5 female; electrical M8 4-pin (PUR cable with axial or radial connector available on request).
- Applications: Measurement and control of dry air and non-corrosive gases; ideal for safety signals, cycle start, vacuum suction cup control, and optimizing energy consumption of vacuum generators.
- IO-Link: IO-Link version distinguishable from the standard model by the logo and the “IO-Link” inscription on the housing. Enables bidirectional digital communication, remote parameterization, and advanced diagnostics, turning the sensor into an intelligent device for Industry 4.0.
Product codes
- 121010
- 122511
Caractéristiques / spécifications techniques
- Housing: Robust ABS
- Size/weight: Compact and lightweight (mountable on machinery and near point of use)
- Calibration: Calibrated and temperature-compensated
- Display: Integrated numeric display (removes need for external gauge); display can be rotated freely
- Outputs: Two independent digital output signals; status indicated by two LEDs
- Programming parameters: Switching points programmable 0–100% of set value; programmable hysteresis; threshold comparison; NO/NC selection; unit selection; parameter lock; display inversion
- Pneumatic connections: Double-threaded G 1/8 inch male or M5 female
- Electrical connections: M8 4-pin; PUR cable with axial or radial connector available
- Media: Suitable for dry air and non-corrosive gases
- Typical applications: Safety signals, cycle start, vacuum suction cup control, energy optimization of vacuum systems
- IO-Link features: Bidirectional digital communication, remote parameterization, advanced diagnostics
