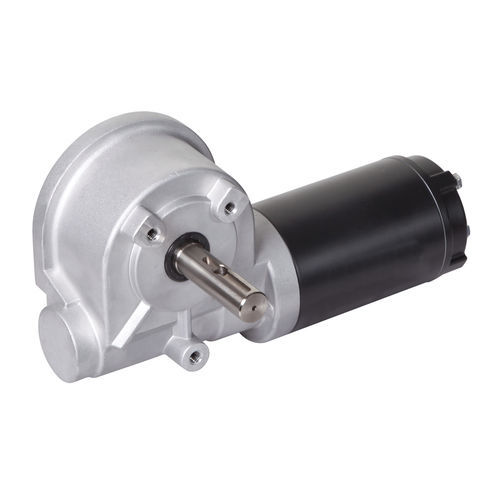

DCギアモーター 80ZYTE-12/JW-5B

直流ウォーム直交軸

Characteristics
Tarp Motor & Winch Motor 3.0 ~ 3.5HP 80ZYTE-12/JW-5B with Chrome Cover
Tarp Motor & Winch Motor 3.0 ~ 3.5HP 80ZYTE-24/JW-5B with Chrome Cover
Tarp Gear Motor 1.8HP 80ZYT-12/JW-5B with Chrome Cover
Tarp Gear Motor 1.8HP 80ZYT-24/JW-5B with Chrome Cover
Tarp Gear Motor 2.1HP 80ZYTS-12/JW-5B with Chrome Cover
Tarp Gear Motor 2.1HP 80ZYTS-24/JW-5B with Chrome Cover
Heavy Duty 2.1HP 90:1 Tarp Motor 164903 (Side Roll Systems)

Dump Truck Tarp Motor (Canvas Engine, Tipper Sheeting Motor, Dura-Torque Gearmotor, Durabuilt Motor), fits most automatic tarp systems.

Specifications and Features

• 3 year warranty
• Hi-torque, direct drive 12VDC (or 24VDC) motor
• No-load current 13.786A @ no-load speed 57rpm
• Maximum Efficiency 32.47%
• 47rpm @ Max. efficiency
• 41.19N.m (360 in-lbs) @ Max. efficiency
• Output Power 200W @ Max. efficiency
• Stall Torque 225.29N.m (Lock-rotor Torque)
• Epoxy sealed gearbox maintains lubrication
• Sealed drive shaft and encased bearing prevents contamination
• Chrome/plastic cover and fasteners included
• 100% tested for quality control
• Replaces multiple OEM and aftermarket models (examples listed by manufacturer numbers and cross-references)

Description

• Engineering drawings and photos provided (product drawing images available on page)
• Compatible / replacement examples: Aero PowerPlus & RS/RA
• Donovan 61G/61L/4422
• Pulltarps 517-0906 / 517-0909
• Roll-Rite 1030 / 1031
• SHURCO 1703823
• Superwinch 90-33319 / 90-33295, 90-33320 / 90-33318, 90-33294
• TARPS AND BEYOND 1000XT / 2000XT
• TSI Apache, Tomahawk, Enforcer
• US Tarps Covering America 11521 / 13655

Caractéristiques / Spécifications techniques

• Model example: 80ZYTE-12 / JW-5B (product family variants listed)
• Gear ratio: 90:1
• Warranty: 3 years
• Voltage: 12VDC (or 24VDC option)
• No-load current: 13.786 A @ no-load speed 57 rpm
• Maximum efficiency: 32.47%
• Speed @ max efficiency: 47 rpm
• Torque @ max efficiency: 41.19 N·m (360 in-lbs)
• Output power @ max efficiency: 200 W
• Stall (lock-rotor) torque: 225.29 N·m
• Epoxy-sealed gearbox (maintenance of lubrication)
• Sealed drive shaft and encased bearing to prevent contamination
• Chrome/plastic cover and fasteners included
• 100% quality tested
