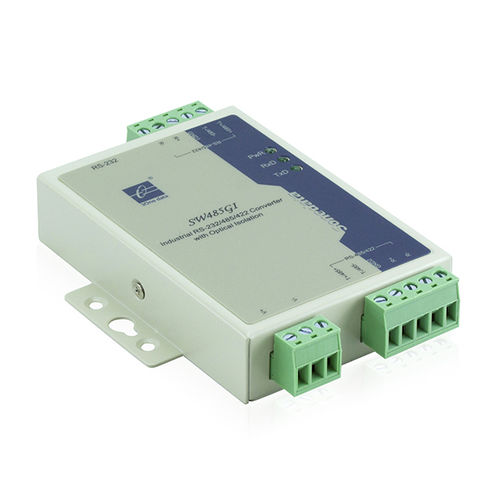

Serial converter SW485GI

for automatic controlsrepeater

MODEL485P RS-232 to RS-485/422 Interface Converter -Support bidirectional data conversion between 1 RS-232 serial port and 1 RS-485/422 serial port -Unique serial port self-adaption technology, which can identify RS-485/RS-422 serial port automatically without setting the switch -RS-485/422 port adopts independent external power supply, and provides 2500V photoelectric isolation protection -Adopt pre-emphasis technology, the communication distance of RS-485 is up to 1800m (115200bps) -Serial port provides 1500W surge protection and 15kV electrostatic protection -RS-485/422 port provides optional connection ways, including RJ45, DB9M and 5-pin terminal blocks Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC and be wildly used in electric power system, industrial automation control, IC card charging system and measuring instrument, etc.
