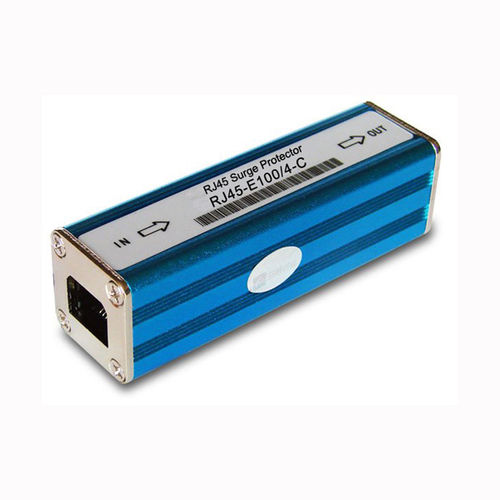

Type 1 surge arrester FL45telecommunicationsRJ45

type 1 surge arrester
type 1 surge arrester
Add to favorites
Compare this product
indicative price

Characteristics

Type
type 1
Applications
telecommunications
Other characteristics
RJ45
Current

5,000 A

Voltage

Min.: 0 V

Max.: 5 V

Description

FL45-E100 100M Ethernet signal surge protector is designed by IEC61000-4-5 and ITU-TK20&K21 standard. It adopts multilevel protective circuit and the newest high-speed surge protection device which has quick response, low residual voltage output and excellent transmission performance. The interface is RJ45 which is easy to use and suit for 10/100M Ethernet device protection, such as lightning protection for web cams, HUB, switch, router. FL45-E100 100M Ethernet signal lightning protector is designed and manufactured on the principle of discharge, limited current, clamping, stabilivolt. When signal wire gets an overvoltage and overcurrent shock, it will put lightning power or its jamming signal into the ground. Overvoltage restriction enables electrical equipment to operate safely within allowable range. This product adopts metal housing and good sealing, which has anti-dust and anti-corrosion function. It adopts serials connection that can restrain high voltage pulse on the wire to prevent backend device from being damaged by lightning and industrial surge.
