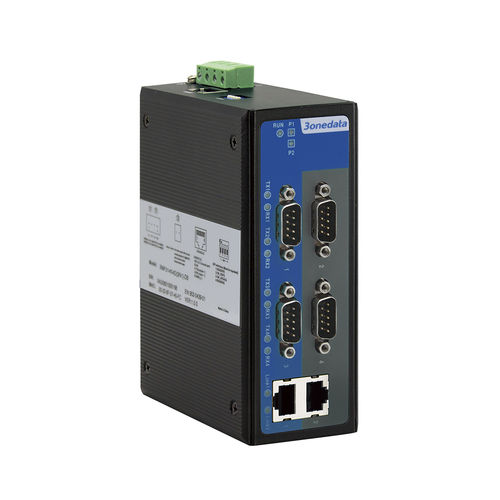

RS-232 device server INP314T-4DI(3IN1)
RS-485RS-422RS485

RS-232 device server
RS-232 device server
Add to favorites
Compare this product


Characteristics

Bus
RS-232, RS422/RS485, RS-485, RS-422, RS485
Output bus
RJ45
Other characteristics
industrial, DIN rail, 4 ports

Description

INP314T-4DI(3IN1)-DB-2P(12-48VDC) is serial device server that can make serial device be equipped with networking capability instantly and centrally manage the scattered serial devices and hosts via network. This product supports 4 3IN1 serial ports to 2 100M Ethernet copper ports which supports electromagnetic isolation. It adopts rail or wall mounting to meet the requirements of different application scenes. Serial device server supports multiple network protocols, such as TCP, UDP, TELNET, ARP, ICMP, HTTP, DNS and DHCP protocol. It also possesses complete management functions, including Access Control, Rapid Configuration, Online Upgrading and so on. Each serial port supports 4 TCP or UDP session connections, and it also supports RealCom, TCP Server, TCP Client, UDP Server, UDP Client, Pair Master, Pair Slave, UDP Rang, UDP Multicast operating modes and TELNET, WEB access modes. Furthermore, supplied management configuration tool based on Windows platform can guide the user to manage and configure the device, achieving immediate networking of serial device via simple settings. It can provide users with good experience with friendly design of network management system interface, simple and convenient operation. DIP switch can achieve restore factory defaults of the device. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in PLC control and management, Building Automation System, Health Care Automation System, measuring instrument and environmental forces monitoring system.
