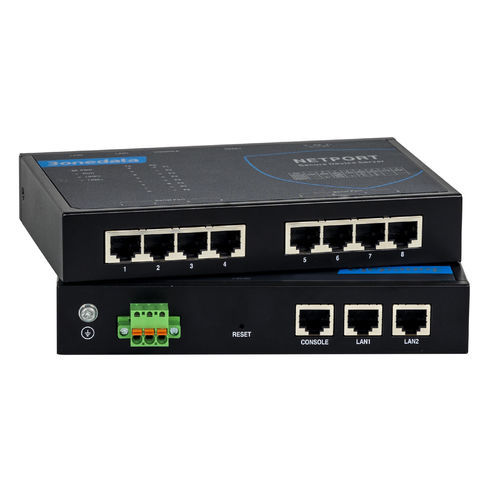

Industrial device server NP5000 Series

RS-232RS-485RS-422

Optional) Support network modes such as redundant mode, switching mode and dual IP mode to meet the needs of various network environments uSupport RealCom, Reverse RealCom, TCP Server, TCP Client, UDP Server, UDP Client, Pair Master, Pair Slave, UDP Rang, UDP Multicast, Telnet, Reverse Telnet, RFC2217, Redundant COM, DRDAS RealCom, DRDAS TCP Server and other operating modes uSupport dual power supply 12~48VDC wide voltage input uSupport -40~ 75℃ wide temperature operatio NP5000 series are the safe serial networking server that can make serial device be equipped with networking capability instantly and centrally manage the scattered serial devices and hosts via network. This series has 6 products to choose. The products support 1/2 3IN1 DB9 serial port to 1 10/100Base-T(X) self-adaptive Ethernet interface or 4/8 3IN1 RJ45 / RS-485 serial port to 2 10/100Base-T(X) self-adaptive Ethernet interfaces. They adopt desktop/wall mounting to meet the requirements of different application scenes. Serial device server supports multiple network protocols, such as TCP, UDP, RFC2217, TELNET, ARP, ICMP, HTTP, HTTPS, SNMP, SSH, SMTP, SNTP, DNS, BOOTP and DHCP protocol. It also possesses complete management functions, including Access Control, Rapid Configuration, Online Upgrading and so on. Each serial port supports 4 TCP or UDP session connections, and it also supports RealCom, Reverse RealCom, TCP Server, TCP Client, UDP Server, UDP Client, Pair Master, Pair Slave, UDP Rang, UDP Multicast, Telnet, Reverse Telnet, RFC2217, Redundant COM, DRDAS RealCom and DRDAS TCP Server work modes and TELNET, WEB and SSHD access modes.
