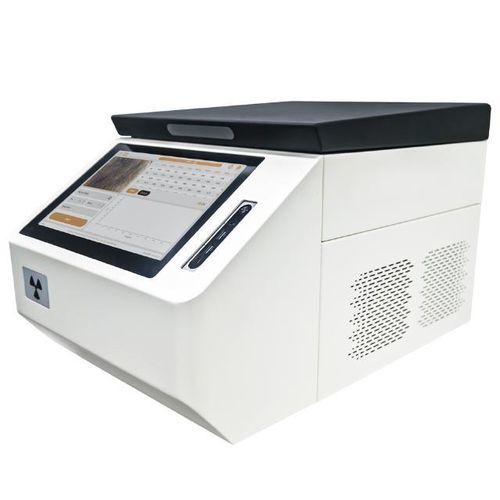

X-ray fluorescence spectrometer GOLD SCAN PRO

energy dispersive X-ray fluorescenceXRFlaboratory

Description
The GOLD SCAN PRO is designed to deliver fast, reliable elemental analysis of catalysts, alloys, minerals, plastics and soils without complex sample preparation. Configurable element sets allow adaptation to specific customer requirements. With near-instant response times and an intuitive interface, the instrument provides actionable results in seconds to improve verification accuracy and operational efficiency.

Main parameters
Dimensions: 362×530×343 mm (L×W×H)
Sample chamber size: 262×297×110 mm (L×W×H)
Power supply: 100-240 VAC, 50/60 Hz
Detection range: Al–U
Detector: Si-PIN / SDD
Algorithm: uses calibration-curve and fundamental parameters (FP) methods to remove background differences, reduce error and improve test accuracy
One-click operation: place sample, close top cover, test with one click and view results; simple operation for non-technical staff
Collimators: PS6 collimator 2.5 mm; PS7 collimator 1.5 mm
Accuracy: PS6 ±0.03% (Au 9999); PS7 ±0.01% (Au 9999)
Camera: integrated 5 MP color HD CMOS camera (sample positioning and image recording)
Printing: Bluetooth printer
Display: large 29.5 cm touchscreen

Features / technical specifications

• Fast, reliable analysis of catalysts, alloys, minerals, plastics and soils
• Configurable element sets to meet specific testing needs
• Analysis methods: calibration-curve and fundamental parameters (FP)
• Detection range: from aluminum to uranium (Al–U)
• Detector options: Si-PIN or SDD
• Available collimators: PS6 (2.5 mm), PS7 (1.5 mm)
• Declared gold accuracy: PS6 ±0.03% (Au 9999), PS7 ±0.01% (Au 9999)
• Integrated camera: 5 MP HD color CMOS for positioning and documentation
• Interface: 29.5 cm touchscreen
• One-click function for simple, repeatable analysis
• Bluetooth printing
• Power supply: 100-240 VAC, 50/60 Hz
• Body dimensions: 362×530×343 mm (L×W×H)
• Sample compartment dimensions: 262×297×110 mm (L×W×H)
