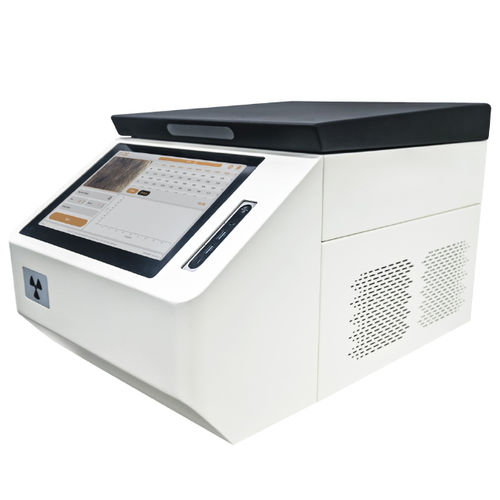

XRF spectrometer Gold Scan Pro S

for precious metals analysisbenchtopSDD

Product overview
The GOLD SCAN PRO S is a benchtop XRF gold analyzer designed for rapid, high-sensitivity elemental analysis of precious metals and alloys. The system offers configurable element setups, a built-in HD camera for precise sample positioning, and an 11.6-inch capacitive touchscreen for intuitive operation. Its detection options (Si‑PIN or SDD) and selectable collimators enable analyses across a wide range of sample types.

Key features

• Higher-sensitivity analysis compared to the standard model
• Customizable element configuration to meet different customer requirements
• Improved operational stability for consistent, immediate results
• One-click test workflow suitable for non-technical personnel
• Built-in 5 MP HD CMOS color camera for intuitive sample positioning and image recording
• Bluetooth printer support for on-site data printing
• 11.6-inch large capacitive touchscreen display for local control

Parameters
Size: 362×530×343 mm (L×W×H)
Sample chamber size: 262×297×110 mm (L×W×H)
Power supply: 100–240 VAC, 50/60 Hz
Detection range: Al—U
Detector: Si‑PIN / SDD
Algorithm: Curve calibration method and Fundamental Parameter (FP) method to reduce background differences and improve accuracy
One-click test: place sample → close top cover → one-click test → view results (suitable for non-technical operators)
Collimator options: PS6 (2.5 mm), PS7 (1.5 mm)
Accuracy: PS6 ±0.03% (Au) (9999); PS7 ±0.01% (Au) (9999)
Camera: Built-in 5 MP HD CMOS color camera to ensure X-ray targets the selected area
Data printing: Bluetooth printer support
Display: 11.6-inch capacitive touchscreen

Technical specifications

• Model: GOLD SCAN PRO S
• Dimensions: 362×530×343 mm (L×W×H)
• Sample chamber: 262×297×110 mm (L×W×H)
• Power: 100–240 VAC, 50/60 Hz
• Detection range: Al—U
• Detector types: Si‑PIN, SDD
• Algorithms: Curve calibration; Fundamental Parameter (FP)
• Workflow: One-click test suitable for non-technical staff
• Collimators: PS6 (2.5 mm), PS7 (1.5 mm)
• Accuracy: PS6 ±0.03% (Au, 9999); PS7 ±0.01% (Au, 9999)
• Camera: 5 MP HD CMOS color camera
• Data output: Bluetooth printer support
• Interface: 11.6-inch capacitive touchscreen
