Built-in junction box 8252DIN railIP66aluminum alloy
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Mounting
- built-in, DIN rail
- Protection level
- IP66
- Material
- aluminum alloy
- Number of knockout
- 4 knockouts, 5 knockouts, 3 knockouts
- Length / diameter
156 mm
(6.1 in)- Width
156 mm
(6.14 in)- Depth
115 mm
(4.53 in)
Description

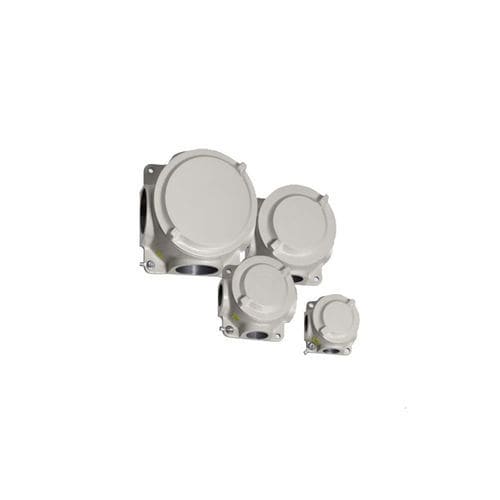

The new 8252 Series Ex d junction boxes are made of a copper-free, seawater-resistant cast aluminum alloy. The DIN rail is pre-assembled; In addition, the cases are flexiblely configured: three sizes available, 3, 4 or 5 terminals, NPT or metric threading with custom equipment always possible; is also suitable for electronic components and relays.
• Ex d box available in 3 sizes
• Pre-mounted with threads and DIN rail for standard terminals
• Built-in holes in the box for quick and easy assembly
• Also suitable for versions with electronic components and relay
