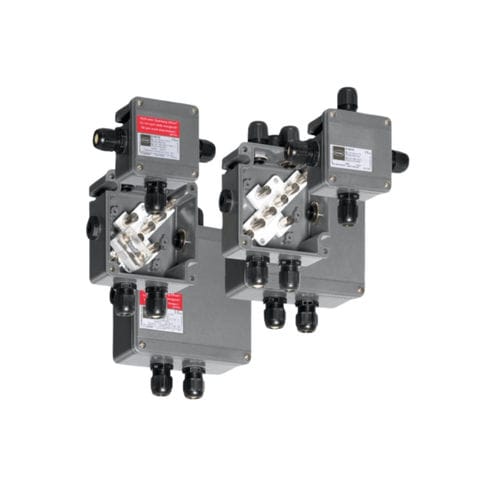

Flush-mount junction box 8118

ATEXIP66rugged

- Ex e diversion box - Maximum ambient temperature: +40 ° C - Minimum ambient temperature: -60 ° C - Certificates: ATEX (PTB), Brazil (ULB), China (NEPSI), Korea (KTL), IECEX (PTB), India (Peso) - Introduction 1: 2 x 8161/7-M20-1304-LT (bulk gasket) - Introduction 2: 1 x 8290/3-M20 (bulk seal) - Introduction 3: bulk seal - Terminals Type 1: 4 x Shirt terminal 4 mm² The 8118 series junction boxes are equipped according to the client specifications of different series terminals as well as plastic or metal cable glands; If necessary also with protection fuses. They are available in 3 sizes and made of fiberglass reinforced polyester resin (GRP). Ambiant temperature - -60 ° C to + 40 ° C Temperature class - T6 Feed - max. 500 V AC. 250V DC Gas class - IIC ATEX protection mode - Ex e (increased security) Certificates - Atex.iecex Material - Reinforced polyester (GRP) Threading size - M20 Body colors - Dark gray Cable entry (s) - 1xm20 UV-resistant polycarbonate - 1 Ex i (intrinsic safety) - 1 -40 ° C to + 75 ° C - 1
