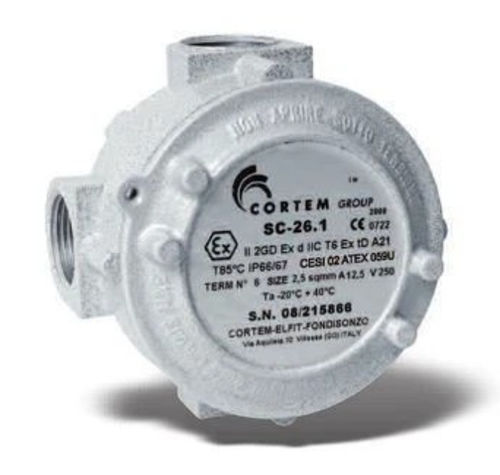

Explosion-proof matrix box SB

ATEXIP66IECEx

- IIC Group. - Wide variety of models - Screw cover with Ergot for safety lock - IP66 / 67 The S series housings are made of ALUMINUM ALLOY OR STAINLESS STEEL AISI316L and are used for the passage of cables also having multipolar terminals as modular terminal blocks. The vast range that is proposed allows to meet the specific requirements that emanate from customers and can be installed in areas classified as zone 1, 2, 21, 22. The construction characteristics of the series S series allow them to withstand operating temperatures comprises between -40 ° C and + 150 ° C Depending on their size, the type of seal used and the terminals used. Ambiant temperature - -40 ° C to + 40 ℃ Temperature class - T6 Warranty - 2¨ Feed - 220V / 380/400 / 440V AC Waterproofing protection (IP) - Ip66.ip67 Application / usage - ATEX zone ATEX zone - Zone 1/2 Gas class - IIC ATEX protection mode - Ex d (explosion) Certificates - Atex.iecex Frequency (Hz) - 50 / 60hz Material - Aluminum Certificat_atex-en_us - CESI 03 ATEX 059U Certificat_iecex-en_us - IECEX these 15.0012U Body colors - GRAY RAL 7035
