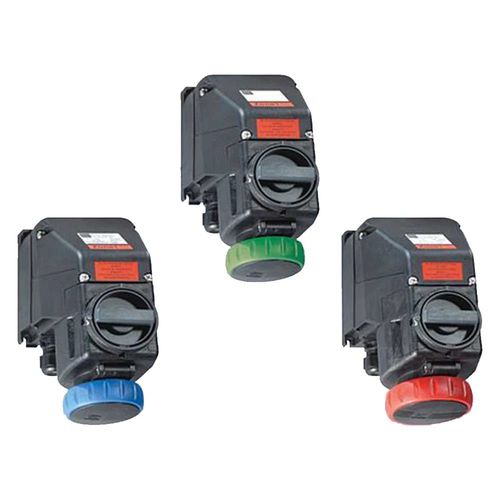

Wall-mounted electrical socket 8570/11

increased safetyIP66high-strength

- IP66 - Different voltage ranges according to EN 60309 - Large operating temperature range - High mechanical strength to shocks and impacts - Perfect protection against the penetration of liquids and dust - 3D data to download on the website - Variations for use in the United States / Canada available upon request Solconsex 5570/11 series of R. Stahl series for the 1/21 zone in version 3, 4 and 5 poles offer full AC-3 switching power up to 16 A. The high degree of protection IP66 guarantees maximum protection against the Penetration of dust and water in all application positions. Self-cleaning lamer contacts provide optimal electrical contact and plugs can be freely connected and disconnected in the zero position. The switch-disconnector contributes to safety by a mechanical locking device thanks to its lockable joystick in position 0 and I. Ambiant temperature - -50 ° C to +65 ° C Temperature class - T6 Warranty - 2¨ Feed - 380V AC Waterproofing protection (IP) - Ip66 Application / usage - ATEX zone ATEX zone - Zone 1/2 Gas class - IIC ATEX protection mode - Ex e (increased security) Certificates - Atex.iecex Frequency (Hz) - 50 / 60hz
