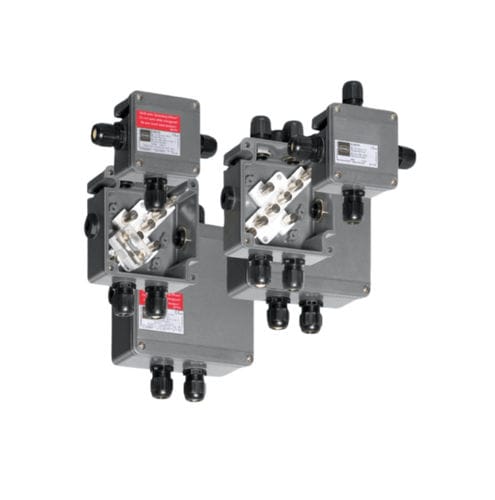

Surface mounted junction box 8118

ATEXreinforcedUV-resistant

- Ex e diversion box - Maximum ambient temperature: +40 ° C - Minimum ambient temperature: -60 ° C - Certificates: ATEX (PTB), Brazil (ULB), China (NEPSI), Korea (KTL), IECEX (PTB), India (Peso) - Introduction 1: 2 x 8161/7-M20-1304-LT (bulk gasket) - Introduction 2: 1 x 8290/3-M20 (bulk seal) - Introduction 3: bulk seal - Terminals Type 1: 4 x Shirt terminal 4 mm² The 8118 series junction boxes are equipped according to the client specifications of different series terminals as well as plastic or metal cable glands; If necessary also with protection fuses. They are available in 3 sizes and made of fiberglass reinforced polyester resin (GRP). Ambiant temperature - -60 ° C to + 40 ° C Temperature class - T6 Warranty - 2¨ Feed - max. 500 V AC. 250V DC Waterproofing protection (IP) - Ip66 Application / usage - ATEX zone ATEX zone - Zone 1/2 Gas class - IIC ATEX protection mode - Ex e (increased security) Certificates - Atex.iecex Material - Reinforced polyester (GRP) Certificat_atex-en_us - PTB 99 ATEX 3103 Certificat_iecex-en_us - IECEX PTB 06.0026 Threading size - M20 Body colors - Dark gray Cable entry (s) - 1xm20 UV-resistant polycarbonate - 1 Ex i (intrinsic safety) - 1 -40 ° C to + 75 ° C - 1
