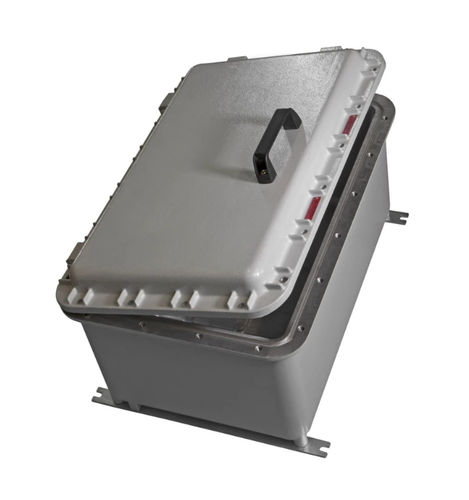

Surface mounted junction box EJBC

ATEXIP66steel

- IIC Gas Group - IP 66/67 - Stainless steel hinges - available with a porthole or with a window for displaying analog or digital instruments The boxes of the EJBC series have been carefully designed for installation in areas with explosion and / or fire risks due to the presence of all gases belonging to the IIA - IIB - IIC group, which are classified as zone 1, 2, 21, 22. The special multiple seal, having been achieved through high quality and high-precision machining, extended gas protection to the IIC group [acétylène (C2H2 ), bisulfure de carbone, hydrogène (H2. Ambiant temperature - -60 ° C to + 150 ° C Temperature class - T6 Warranty - 2¨ Feed - 24V DC Waterproofing protection (IP) - Ip66.ip67 Application / usage - ATEX zone ATEX zone - Zone 1/2 Gas class - IIC ATEX protection mode - Ex d (explosion) Certificates - Atex.iecex Frequency (Hz) - 50 / 60hz Material - Aluminum Certificat_atex-en_us - EPT 20 ATEX 4074 U Certificat_iecex-en_us - EPT 20 ATEX 4074 U Threading size - M20 Body colors - Ral7035 Cable entry (s) - 1xm20 Threading type - ISO GRAY RAL 7035 - 1 -50 ° C to 150 ° C - 1
