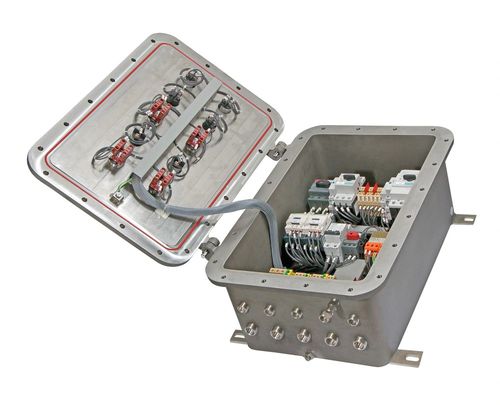

Wall-mounted junction box EJBX

ATEXIP66IP67

- Zones 1, 2, 21, 22 - IIB + H2 Group - Stainless steel junction boxes EJBX series housings are set up in industrial facilities with explosion and fire and characterized by the presence of combustible dust, classified as zone 1, 2, 21, 22. These housings are made of welded sheet In steel steel316L, with stainless steel screws and a seal on the perimeter between the body and the silicone cover, for guaranteeing IP66 protection. EJBX is essentially used to connect cables with the associated bypass terminals, as fuse, transformers, ballast boxes, such as control and signaling tables, lighting distribution and driving force or starter. Engine, with different configurations that can be customized for our customers around the world. Ambiant temperature - -20 ° C to 40 ° C Temperature class - T6 Gas class - IIB ATEX protection mode - Ex d (explosion) Certificates - Atex.iecex Frequency (Hz) - 50 / 60hz Material - 316L Stainless Steel Certificat_iecex-en_us - TSA 06.0011 Threading size - M20 Body colors - Dark gray Cable entry (s) - 1xm20 Threading type - ISO IIC - 1
