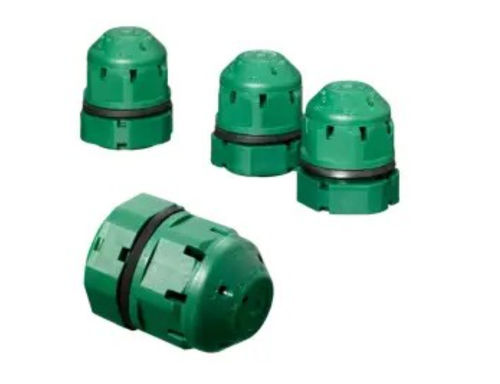

Round plug 8162/1

threadedGRPsecurity

- Ambient temperature: -40 ° C to + 70 ° C - More safety thanks to the prevention of condensation moisture in the housings - Constant pressure compensation between the housing and the environment - Ex e protection mode (increased safety), maximum degree of protection. Ip65 R. Stahl 8162 Respirators Corkouts ensure continuous pressure of pressure between the inside of the housing and the ambient atmosphere. This ventilation prevents moisture from entering the housing through the joints and condense there. The respirator caps are in GRP and correspond to the maximum requirements of the degree of protection IP65. Ambiant temperature - -40°C to +70°C Warranty - 2¨ Waterproofing protection (IP) - Ip65 Application / usage - ATEX zone ATEX zone - Zone 1/2 Gas class - IIC ATEX protection mode - Ex e (increased security) Certificates - Atex.iecex Material - Polyamide Certificat_atex-en_us - PTB 01 ATEX 1018 Certificat_iecex-en_us - IECEX PTB 06.0028 Threading size - M25 -40 ° to + 70 ° - 1 Ip66 - 1
