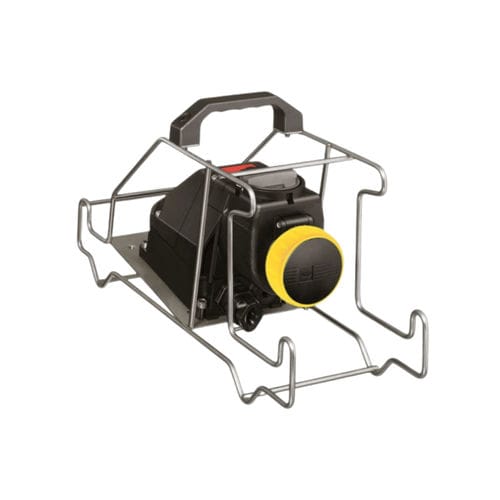

Over IP extender 8570/16

- Product Description: Connector Base 16 A - IP66 - Maximum ambient temperature: +55 ° C - Minimum ambient temperature: -30 ° C - Introduction 2 Type: 8290/3-M25 - Introduction 1 Type: HSK-K-MZ-EX M25x1,5 - Assigned service current: 16 A Certificates: ATEX (PTB), Korea (KGS), IECEX (PTB), Taiwan (ITRI) - Range of frequencies: 50/60 Hz - Silicone without: Yes Code Color: Blue - Coding (time position): 6 - Detacious number of poles: 2 p + pe The prolongating bases for the area 1 of the 8570/16 series of R. Stahl with switch base are used to connect fixed and mobile electrical equipment, as well as the connection of the lines or electrical circuits in the zones Ex. Application area in the Zone 1, 21 with full switching power AC-3 up to 16 A. Thanks to their stainless steel support chassis and the large handle, they can easily be transported and positioned easily on the support feet with flexibility and safety. Ambiant temperature - -50 ° C to +65 ° C Temperature class - T6 Warranty - 2¨ Feed - 200v AC Waterproofing protection (IP) - Ip66 Application / usage - ATEX zone ATEX zone - Zone 1/2 Gas class - IIC ATEX protection mode - Ex d (explosion) Certificates - Atex.iecex Frequency (Hz) - 50 / 60hz Material - Polyamide Body colors - BLUE Ex e (increased security) - 1
