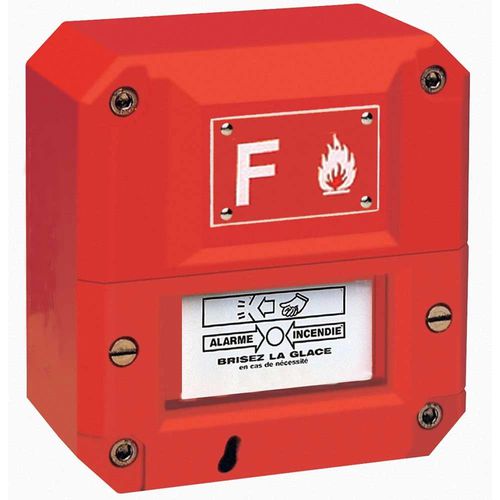

Explosion-proof manual call point CSE0009

ATEXmembrane

- IP21 - Use: 1.5 A / 24 VCC - 0.3 A / 48 VCC - Comes with a reset key - NF contact with line opening, no to line - Equipped with a deformable membrane or a pre-broken window - Can be equipped with a transparent protective valve If your security system is in an explosive area, it is necessary to install ATEX certified products. The anti-deflating manual trigger is an ideal conventional waterproof triggering member for all risk areas such as: waste, warehouse, oil platform or industry. Ambiant temperature - -40°C to +70°C Temperature class - T6 Feed - 24-48V DC Waterproofing protection (IP) - Ip66 Application / usage - En-54 Gas class - IIC ATEX protection mode - Ex d (explosion) Certificates - ATEX Material - Reinforced polyester (GRP) Certificat_atex-en_us - BAS02 ATEX21205X / 7 Body colors - Red Mounting type - Projecting
