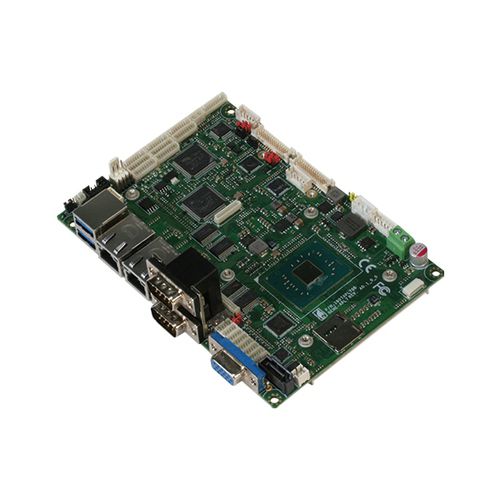

3.5” SubCompact Board with Intel® Pentium® N4200/ Celeron® N3350 Processor SoC
In addition to its pairs of external USB3.0 and COM ports, the GENE-APL7 features internal connectors for eight USB2.0 and up to ten COM ports. The powerful SBC also has MiniCard and mSATA expansion slots and an 8-bit DIO, making it one of the most expandable subcompact motherboards on the market. Despite its impressive specifications, the AAEON GENE-APL7 is an extremely cost-effective solution.
Different configurations of the GENE-APL7 are available, and they feature either single or dual LVDS connectors along with a VGA connector. An eDP port is also available on request, and as the GENE-APL7 supports 4K resolution, it can display any images you want, any way you want to show them.
The fanless GENE-APL7 features an optimized design layout to ensure it has the smallest possible footprint and can be used in applications with severe space constraints.
The GENE-APL7 was built with energy efficiency in mind. In addition to utilizing low power consumption LVDS technology and being a fanless solution, the board is fitted with a low-power Intel® processor.
Features
Intel® Pentium® N4200/ Celeron® N3350 Processor SoC
DDR3L 1866 MHz SODIMM x 1, up to 8 GB
VGA/LVDS1/LVDS2 (LVDS1 Co-design with eDP
SATA 6.0 Gb/s x 1, GPIO x 8
USB 3.0 x 2, USB 2.0 x 8, COM x 12
mSATA x 1 (Full size), Mini Card x 1 (Full size) with uSIM
DC 12V Only, AT/ATX Mode
