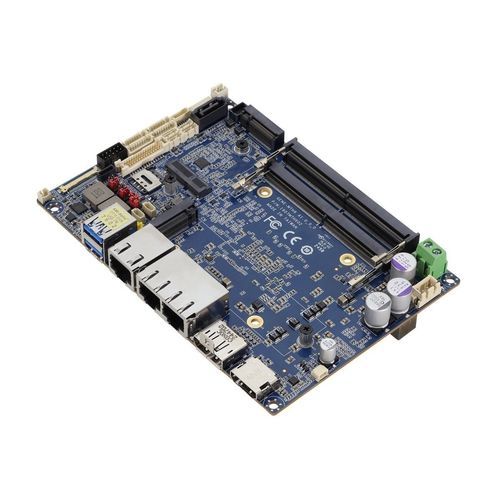

3.5" SubCompact single-board computer GENE-ARH6 series

Intel® Core™ UltraMini PCIeM.2 Key M

Intel® Core™ Ultra processors (Series 2) DDR5 6400 MHz, Dual Channel SODIMM x 2, up to 96GB LVDS x 1, eDP x 1, DP x 1, HDMI x 1 LAN x 3, SATA 6Gb/s x 1, 8-bit GPIO USB 3.2 Gen 2 x 2, USB 2.0 x 4 M.2 2280 M-Key x 1, M.2 3052 B-Key x 1, M.2 2230 E-Key x 1 DC Input 9 ~ 36V Optional Accessories: - Part Number: GENE-MTH6-FAN01, Description: CPU Cooler.12V.Smart FAN, Qty: 1 - Part Number: GENE-MTH6-HSP01, Description: Heatspreader.100*72*9.5mm, Qty: 1 - Part Number: PER-SB2B-A01-0001, Description: FPC2.M.2 2280 M key x2.PCIe〔x4〕, Qty: 1 - Part Number: 1702150155, Description: SATA HDD Power Cable, 15cm, Qty: 1 - Part Number: 170204010R, Description: Power Cable.Double 4P , 10cm, Qty: 1 - Part Number: 170X000398, Description: Power Cable, DC JACK, 30cm, Qty: 1 - Part Number: 170X000603, Description: Front Panel Cable , 10cm, Qty: 1 - Part Number: 170X000156, Description: Audio Cable, 25cm, Qty: 1 - Part Number: 1701090150, Description: COM Port Cable, 15cm, Qty: 4 - Part Number: 1700050207, Description: USB 2.0 Cable, 20cm, Qty: 4 Product Category: Embedded Single Board Computers, 3.5” SubCompact Boards Model: GENE-ARH6 Key Features: • Intel® Core™ Ultra processors (Series 2) • DDR5 6400 MHz, Dual Channel SODIMM x 2, up to 96GB • LVDS x 1, eDP x 1, DP x 1, HDMI x 1 • LAN x 3, SATA 6Gb/s x 1, 8-bit GPIO • USB 3.2 Gen 2 x 2, USB 2.0 x 4 • M.2 2280 M-Key x 1, M.2 3052 B-Key x 1, M.2 2230 E-Key x 1 • DC Input 9 ~ 36V
