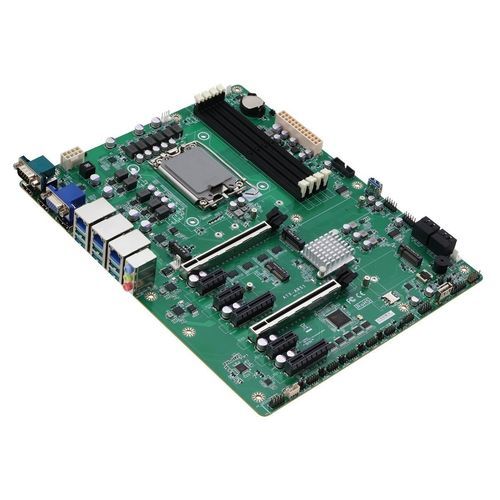

ATX motherboard ATX-Q870A-A10

Intel® Core™ UltraIntel® Q870DDR5 UDIMM

Overview
The AAEON ATX-Q870A is an industrial ATX motherboard designed for Intel® Core™ Ultra Processors (Series 2) with LGA 1851 socket. It delivers a balanced platform for compute-intensive industrial applications, high-performance workstations and edge gateways by combining next-generation CPU features with expanded memory, storage and I/O options.

Key Features

• Intel® Core™ Ultra Processors (Series 2), LGA 1851 socket, up to 125W
• DDR5 6400MT/s, Dual-Channel CU/U-DIMM x4, up to 256GB
• M.2 M-Key x2, M.2 E-Key x1, M.2 B-Key x1
• USB 3.2 x9, USB 2.0 x7
• 2.5GbE LAN x3
• SATA 6Gb/s x4 with RAID 0,1,5,10
• HDMI 2.1 TMDS x2, DisplayPort 1.4a x1, VGA x1 (supports 4K@60Hz)
• PCIe Gen5 x16 x2; PCIe Gen4 x4 x2; PCIe Gen4 x1 x3
• ATX power support

Support for Multiple PCIe Devices
The ATX-Q870A offers extensive expansion capacity with two PCIe Gen5 x16 slots and multiple PCIe Gen4 slots. This enables simultaneous installation of high-performance GPUs, AI accelerators, NVMe storage devices and specialized I/O modules (serial interface cards, sensor adaptors, low-speed NICs). Four M.2 key slots allow integration of wireless modules (4G/5G, Wi‑Fi 6) and additional NVMe drives for flexible system design.

Intel® Core™ Ultra (Series 2) CPU Support
Supports LGA 1851 socket CPUs up to 125W from the Intel® Core™ Ultra Series 2 family. The platform can utilize up to 24 cores / 24 threads and leverages integrated Intel® AI Boost NPU and Intel® Graphics GPU capabilities for hardware-accelerated inference (platform-reported AI performance up to 36 TOPS).

Next-Gen I/O for Speed and Flexibility
Wide I/O selection includes nine USB 3.2 ports, seven USB 2.0 ports, three 2.5GbE LAN ports and multiple COM connectors. Display outputs comprise dual HDMI 2.1 TMDS, one DisplayPort 1.4a and one VGA; HDMI/DP can drive 4K@60Hz. These interfaces support both modern high-resolution displays and legacy industrial monitors.

Specifications

• Model: ATX-Q870A (AAEON)
• CPU support: Intel® Core™ Ultra Processors (Series 2), LGA 1851, up to 125W, up to 24 cores / 24 threads
• Platform AI/Graphics: Intel® AI Boost NPU and Intel® Graphics GPU (platform-reported AI up to 36 TOPS)
• Memory: DDR5 6400MT/s, Dual-Channel, CU/U-DIMM x4, up to 256GB
• M.2 slots: M.2 M-Key x2, M.2 E-Key x1, M.2 B-Key x1 (NVMe, wireless modules 4G/5G, Wi‑Fi 6)
• SATA: SATA 6Gb/s x4 with RAID (0,1,5,10)
• USB: USB 3.2 x9, USB 2.0 x7
• LAN: 2.5GbE x3
• Video outputs: HDMI 2.1 TMDS x2, DisplayPort 1.4a x1, VGA x1 (supports 4K@60Hz)
• PCIe expansion: PCIe Gen5 x16 x2; PCIe Gen4 x4 x2; PCIe Gen4 x1 x3
• COM: multiple COM connectors
• Power: ATX power
• Form factor: ATX (industrial motherboard)
