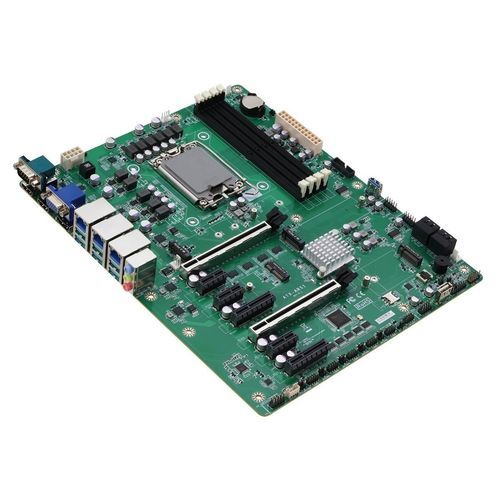

ATX motherboard ATX-Q870A-A10

Intel® Core™ UltraIntel® Q870DDR5 SDRAM

Overview
The AAEON ATX-Q870A is an industrial ATX motherboard engineered for Intel® Core™ Ultra Processors (Series 2) with LGA 1851 socket. It pairs next-generation CPU performance with expanded memory capacity, a broad I/O set and multiple expansion slots, making it suitable for industrial automation, high-performance workstations, IoT gateways and AI-enabled edge systems.

Key features

• Intel® Core™ Ultra Processors (Series 2), LGA 1851 Socket, up to 125W
• DDR5 6400MT/s, Dual-Channel CU/U-DIMM x4, up to 256GB
• M.2 M-Key x2, M.2 E-Key x1, M.2 B-Key x1
• USB 3.2 x9, USB 2.0 x7
• 2.5GbE LAN x3
• SATA 6Gb/s x4 with RAID 0,1,5,10
• HDMI 2.1 (TMDS) x2, DisplayPort 1.4a x1, VGA x1
• PCIe Gen 5 x16 x2, PCIe Gen 4 x4 x2, PCIe Gen 4 x1 x3
• ATX form factor and ATX power

Support for multiple PCIe devices
The ATX-Q870A offers extensive expansion with two PCIe Gen 5 x16 slots plus additional PCIe Gen 4 x4 and x1 slots. This enables concurrent integration of high-performance GPUs, AI accelerators, NVMe storage and task-specific modules such as serial interface cards, sensor interfaces and low-speed NICs. Four M.2 key slots permit 4G/5G, Wi‑Fi 6 and NVMe add-on modules.

Intel Core Ultra Processors (Series 2) support
Compatible with LGA 1851 CPUs up to 125W from the Intel® Core™ Ultra Series 2 family. Platform support includes up to 24 cores/24 threads (depending on CPU), integrated Intel® Graphics and Intel® AI Boost NPU for hardware-accelerated inferencing (quoted up to ~36 TOPS for applicable workloads).

Next‑Gen I/O and display
Comprehensive I/O includes nine USB 3.2 and seven USB 2.0 ports, triple 2.5GbE LAN for reliable and redundant networking, six COM connectors for serial devices, and multiple display outputs: dual HDMI 2.1 (TMDS), one DisplayPort 1.4a and one VGA for legacy compatibility. Digital outputs support 4K @ 60Hz where applicable.

Applications
Designed for compute-intensive embedded applications such as industrial automation, high-performance workstation builds, IoT gateway deployments, digital signage and AI-enabled edge solutions that require multiple expansion devices and high memory bandwidth.

Caractéristiques / spécifications techniques

• Model: ATX-Q870A
• Brand: AAEON
• CPU socket: LGA 1851 supporting Intel® Core™ Ultra Processors Series 2, up to 125W
• CPU cores/threads supported: up to 24 cores / 24 threads (depending on CPU)
• Onboard AI/graphics: Intel® AI Boost NPU and integrated Intel® Graphics GPU (hardware-accelerated inferencing capability cited up to ~36 TOPS for supported workloads)
• Memory: DDR5 6400MT/s, Dual-Channel, 4 CU/U-DIMM slots, up to 256GB
• Expansion slots: PCIe Gen 5 x16 x2, PCIe Gen 4 x4 x2, PCIe Gen 4 x1 x3
• M.2 slots: M.2 M-Key x2, M.2 E-Key x1, M.2 B-Key x1
• Storage: SATA 6Gb/s x4 with RAID support (0, 1, 5, 10)
• USB: USB 3.2 x9, USB 2.0 x7
• LAN: 2.5GbE x3
• Serial: COM connectors x6
• Video outputs: HDMI 2.1 (TMDS) x2, DisplayPort 1.4a x1, VGA x1 (supports 4K @60Hz on digital outputs where applicable)
• Form factor: ATX
• Power: ATX power
• Target use cases: industrial automation, high-performance workstations, IoT gateways, digital signage, AI/edge solutions
