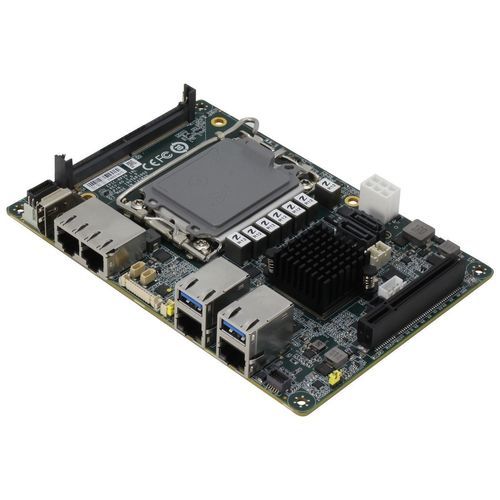

EPIC single-board computer EPIC-BTS9 series
Intel® Core™12th Generation Intel® Core™13th Generation Intel® Core™

EPIC single-board computer - EPIC-BTS9 series - AAEON - Intel® Core™ / 12th Generation Intel® Core™ / 13th Generation Intel® Core™
EPIC single-board computer - EPIC-BTS9 series - AAEON - Intel® Core™ / 12th Generation Intel® Core™ / 13th Generation Intel® Core™
EPIC single-board computer - EPIC-BTS9 series - AAEON - Intel® Core™ / 12th Generation Intel® Core™ / 13th Generation Intel® Core™ - image - 2
EPIC single-board computer - EPIC-BTS9 series - AAEON - Intel® Core™ / 12th Generation Intel® Core™ / 13th Generation Intel® Core™ - image - 3
EPIC single-board computer - EPIC-BTS9 series - AAEON - Intel® Core™ / 12th Generation Intel® Core™ / 13th Generation Intel® Core™ - image - 4
Add to favorites
Compare this product
Go to the AAEON website for more information

Characteristics

Form factor
EPIC
Processor
Intel® Core™, 12th Generation Intel® Core™, 13th Generation Intel® Core™, 14th Generation Intel® Core™
Extension slot
M.2 Key E, M.2 Key B, M.2 Key M
Connectivity
2.5 GbE, USB 2.0, USB 3.2, HDMI, GbE, eDP, RS-232, VGA
Memory
DDR5-SODIMM
Other characteristics
industrial, embedded, multiple display
Processor frequency

Min.: 0 GHz

Max.: 8 GHz

Memory size

Min.: 0 GB

Max.: 64 GB

Description

Overview
  • EPIC-BTS9 is an EPIC board supporting 12th/13th/14th Generation Intel Core and Series 2 processors, designed for embedded applications requiring modern CPU performance and extensive I/O.


Key features
  • Supports 12th/13th/14th Generation Intel Core and Series 2 processors
  • Memory: 2 x DDR5 SODIMM 4800, up to 64 GB
  • Triple display support: 1 x HDMI 2.0, 1 x eDP, 1 x VGA
  • Networking: 3 x Intel I226 2.5GbE, 1 x Intel I219-LM GbE
  • USB: 2 x USB 3.2 Gen 2 (Rear I/O), 2 x USB 2.0 (Pin Header)
  • Storage & expansion: 1 x M.2 2280 M-key, 1 x M.2 3052 B-key, 1 x M.2 2230 E-key, FPC (PCIe3.0[x2] x1), PCIe4.0[x8] x1
  • Serial & general purpose I/O: 2 x COM ports, 8-bit GPIO
  • Power input: DC 12V in


Notes
  • Form factor: EPIC board (industry-standard EPIC form factor)
  • Designed for embedded/industrial applications requiring multiple display outputs, high-speed networking, and flexible storage/expansion options


Characteristics / Technical specifications
  • Model: EPIC-BTS9
  • Processor support: 12th/13th/14th Generation Intel Core and Series 2 Processors
  • Memory: 2 x DDR5 SODIMM 4800, up to 64 GB
  • Display outputs: 1 x HDMI 2.0, 1 x eDP, 1 x VGA
  • Ethernet: 3 x Intel I226 2.5GbE, 1 x Intel I219-LM GbE
  • USB: 2 x USB 3.2 Gen 2 (Rear I/O), 2 x USB 2.0 (Pin Header)
  • M.2 slots: 1 x M.2 2280 M-key, 1 x M.2 3052 B-key, 1 x M.2 2230 E-key
  • Other expansion: FPC with PCIe3.0[x2] x1, PCIe4.0[x8] x1
  • Serial / I/O: 2 x COM ports, 8-bit GPIO
  • Power: DC 12V input

Catalogs

No catalogs are available for this product.

See all of AAEON‘s catalogs
Go to the AAEON website for more information

Other AAEON products

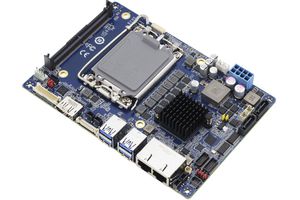

EPIC Boards
