EPIC single-board computer EPIC-PTH9 series
4"Intel® Core™ UltraPCI Express

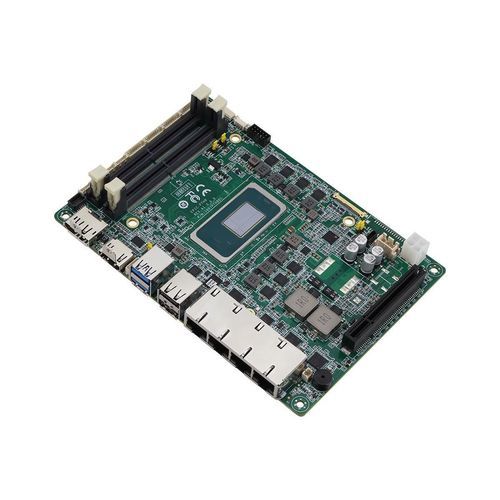

EPIC single-board computer - EPIC-PTH9 series - AAEON - 4" / Intel® Core™ Ultra / PCI Express
EPIC single-board computer - EPIC-PTH9 series - AAEON - 4" / Intel® Core™ Ultra / PCI Express
EPIC single-board computer - EPIC-PTH9 series - AAEON - 4" / Intel® Core™ Ultra / PCI Express - image - 2
EPIC single-board computer - EPIC-PTH9 series - AAEON - 4" / Intel® Core™ Ultra / PCI Express - image - 3
EPIC single-board computer - EPIC-PTH9 series - AAEON - 4" / Intel® Core™ Ultra / PCI Express - image - 4
Add to favorites
Compare this product
Go to the AAEON website for more information

Characteristics

Form factor
EPIC, 4"
Processor
Intel® Core™ Ultra
Extension slot
M.2 Key E, M.2 Key B, M.2 Key M, PCI Express
Connectivity
LVDS, gigabit Ethernet, 2.5 GbE, USB 2.0, USB 3.2, HDMI, RJ45, DisplayPort, eDP
Memory
DDR5-SODIMM, DDR5 SDRAM
Other characteristics
multiple display
Processor frequency

Max.: 8 GHz

Min.: 0 GHz

Memory size

Max.: 128 GB

Min.: 0 GB

Description

Product Overview
  • Model: EPIC-PTH9
  • Board size: 4” EPIC form factor
  • Processor family: Intel® Core™ Ultra Series 3 processors (up to 65W)


Key Features
  • Intel® Core™ Ultra Series 3 processors, up to 65W
  • Intel Graphic Engine 4Xe/12Xe, up to 180 TOPs
  • Memory: 2 x DDR5 SODIMM 7200, up to 128GB
  • Triple display: LVDS / eDP (optional) + HDMI 2.1 + DisplayPort 2.1
  • Networking: 3 x 2.5GbE, 1 x GbE
  • USB: 2 x USB 3.2 Gen 2, 6 x USB 2.0
  • Storage/expansion: M.2 M-Key, M.2 B-Key, M.2 E-Key
  • Expansion slot: 1 x PCIe 5.0 x8 slot
  • I/O: 4 x COM, 8-bit GPIO
  • Security: TPM 2.0
  • Power input: DC 9V–24V


Ordering
  • Shop Online (Orders dispatched in 3 working days)


Technical specifications
  • Form factor: 4” EPIC
  • CPU: Intel® Core™ Ultra Series 3 (up to 65W)
  • Graphics: Intel Graphic Engine 4Xe/12Xe (up to 180 TOPs)
  • Memory: 2 x DDR5 SODIMM 7200, up to 128GB
  • Display outputs: LVDS / eDP (optional), HDMI 2.1, DisplayPort 2.1
  • LAN: 3 x 2.5GbE, 1 x GbE
  • USB: 2 x USB 3.2 Gen 2, 6 x USB 2.0
  • M.2 slots: M-Key, B-Key, E-Key
  • PCIe: 1 x PCIe 5.0 x8 slot
  • Serial/IO: 4 x COM, 8-bit GPIO
  • Security: TPM 2.0
  • Power: DC input 9V–24V
