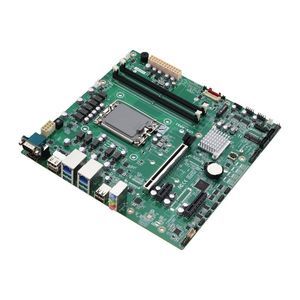

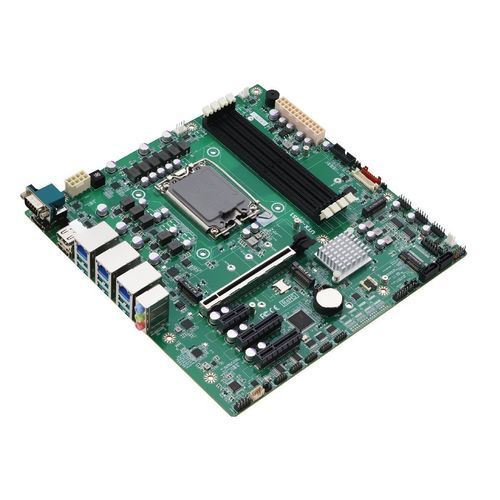

Micro-ATX motherboard MAX-Q870A
Intel® Core™ UltraIntel® Q870DDR5 UDIMM

Micro-ATX motherboard - MAX-Q870A - AAEON - Intel® Core™ Ultra / Intel® Q870 / DDR5 UDIMM
Micro-ATX motherboard - MAX-Q870A - AAEON - Intel® Core™ Ultra / Intel® Q870 / DDR5 UDIMM
Micro-ATX motherboard - MAX-Q870A - AAEON - Intel® Core™ Ultra / Intel® Q870 / DDR5 UDIMM - image - 2
Micro-ATX motherboard - MAX-Q870A - AAEON - Intel® Core™ Ultra / Intel® Q870 / DDR5 UDIMM - image - 3
Add to favorites
Compare this product
Go to the AAEON website for more information

Characteristics

Format
micro-ATX
Processor
Intel® Core™ Ultra
Chipset
Intel® Q870
Memory
DDR5 UDIMM, DDR5 SDRAM
Extension slot
PCI Express, SATA3, M.2 Key E, M.2 Key M, M.2 Key B, 16x PCIe, M.2
Applications
industrial, embedded
Connectivity
USB 3.2, 2.5 GbE, USB 2.0

Description

Model
  • MAX-Q870A


Overview
  • Micro-ATX industrial motherboard designed for Intel® Core™ Ultra 200S Series processors (LGA 1851), supporting up to 125W.
  • Supports DDR5 6400 MT/s in dual channel via CU/U-DIMM x4, up to 256GB total memory.
  • Multiple M.2 expansion options: M.2 M-Key x2, M.2 E-Key x1, M.2 B-Key x1.
  • High-speed USB connectivity: USB 3.2 x8 and USB 2.0 x6.
  • Networking: Three 2.5GbE LAN ports.
  • Storage: SATA 6Gb/s x2 with RAID support for RAID 0, 1, 5.
  • PCIe expansion: PCIe Gen5 x16 x1, PCIe Gen4 x4 x2, PCIe Gen4 x1 x1.
  • Power requirement: ATX power.


Additional notes
  • Form factor: Micro-ATX, industrial-grade design suitable for embedded and industrial applications.


Specifications
  • Model: MAX-Q870A
  • Form factor: Micro-ATX
  • CPU socket: LGA 1851 for Intel® Core™ Ultra 200S Series processors (up to 125W)
  • Memory: DDR5 6400 MT/s, Dual Channel, CU/U-DIMM x4, up to 256GB
  • M.2 slots: M.2 M-Key x2, M.2 E-Key x1, M.2 B-Key x1
  • USB: USB 3.2 x8, USB 2.0 x6
  • LAN: 2.5GbE LAN x3
  • SATA: SATA 6Gb/s x2 with RAID 0, 1, 5
  • PCIe slots: PCIe Gen5 x16 x1; PCIe Gen4 x4 x2; PCIe Gen4 x1 x1
  • Power: ATX Power

Catalogs

MAX-Q870A
MAX-Q870A
2 Pages
