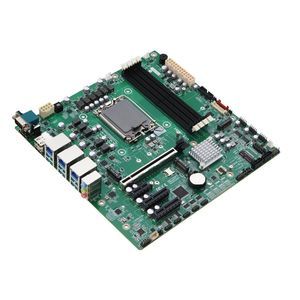

Micro-ATX motherboard MAX-H810A
Intel® Core™ UltraDDR5 UDIMMDDR5 SDRAM

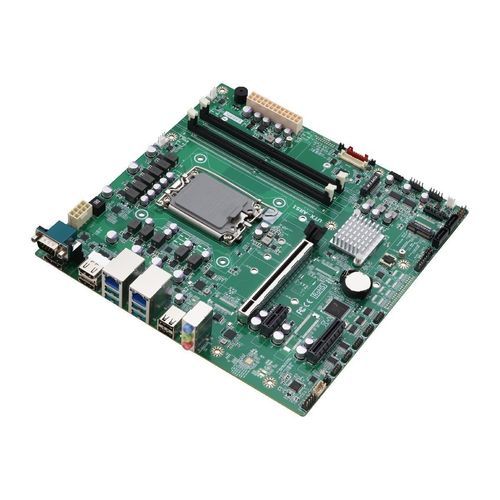

Micro-ATX motherboard - MAX-H810A - AAEON - Intel® Core™ Ultra / DDR5 UDIMM / DDR5 SDRAM
Micro-ATX motherboard - MAX-H810A - AAEON - Intel® Core™ Ultra / DDR5 UDIMM / DDR5 SDRAM
Micro-ATX motherboard - MAX-H810A - AAEON - Intel® Core™ Ultra / DDR5 UDIMM / DDR5 SDRAM - image - 2
Micro-ATX motherboard - MAX-H810A - AAEON - Intel® Core™ Ultra / DDR5 UDIMM / DDR5 SDRAM - image - 3
Add to favorites
Compare this product
Go to the AAEON website for more information

Characteristics

Format
micro-ATX
Processor
Intel® Core™ Ultra
Memory
DDR5 UDIMM, DDR5 SDRAM
Extension slot
16x PCIe, M.2, M.2 Key E, SATA3, M.2 Key M, PCI Express
Applications
industrial, embedded
Connectivity
USB 3.2, USB 2.0, 2.5 GbE

Description

Model
  • MAX-H810A


Overview
  • Micro-ATX motherboard designed for Intel® Core™ Ultra (Series 2) processors using LGA 1851 socket, intended for embedded and industrial computing applications.


Key features
  • Supports Intel® Core™ Ultra (Series 2) LGA 1851 Socket Processors
  • Memory: DDR5 6400MT/s Dual-Channel, CU/U-DIMM x2, up to 128GB
  • Storage: M.2 M-Key x1, M.2 E-Key x1
  • USB: USB 3.2 x4, USB 2.0 x8
  • Networking: Intel® Ethernet Controller I226-V, 2.5GbE x2
  • SATA: SATA 6Gb/s x2 with RAID 0, 1, 5
  • Expansion: PCIe Gen5 x16 x1, PCIe Gen4 x4 x1, PCIe Gen4 x1 x1
  • Power: ATX Power connector


Description
  • Industrial Micro-ATX platform providing modern I/O and high-speed memory support for embedded systems, edge computing and industrial control applications. Designed to pair with Intel® Core™ Ultra (Series 2) processors on LGA 1851 socket, it offers multiple high-speed expansion options and dual 2.5GbE networking for demanding connectivity requirements.


Technical specifications
  • Model: MAX-H810A
  • CPU Socket: LGA 1851, Intel® Core™ Ultra (Series 2)
  • Chipset / Platform: not specified
  • Memory: 2 x CU/U-DIMM slots, DDR5 6400MT/s, Dual-Channel, up to 128GB
  • M.2 slots: 1 x M.2 M-Key, 1 x M.2 E-Key
  • USB: 4 x USB 3.2, 8 x USB 2.0
  • Ethernet: 2 x 2.5GbE (Intel® I226-V)
  • SATA: 2 x SATA 6Gb/s, RAID 0/1/5 support
  • PCIe expansion: 1 x PCIe Gen5 x16, 1 x PCIe Gen4 x4, 1 x PCIe Gen4 x1
  • Power connector: ATX Power
  • Form factor: Micro-ATX

Catalogs

MAX-H810A
MAX-H810A
2 Pages
