Setting tool WBOSSO

General Description

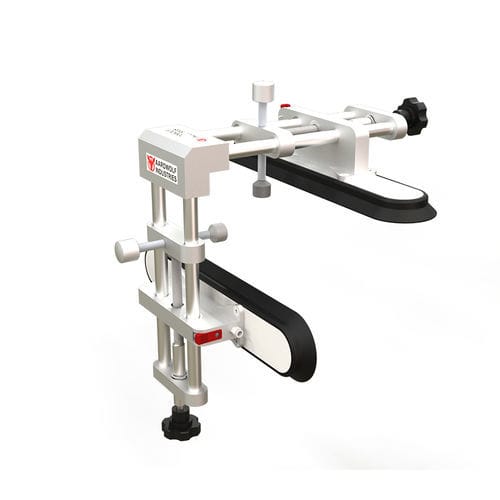

The Aardwolf Waterfall Setting Tool (WBOSSO) is a precision vacuum-assisted alignment tool designed to position and bond stone panels at a precise 90° angle for waterfall-style countertop installations. It secures slabs during adhesive application to ensure tight, flush seams and a clean finish. The tool is suitable for granite, marble, quartz and engineered stone and can be paired with the Aardwolf AVPP03 Vacuum Pump for consistent vacuum control.

Note
Supplied as a set of two tools (left and right units). The supply includes the AVPP03 Vacuum Pump.

Key Features

• Dual elongated suction pads per tool (4 pads per set) provide secure grip on large stone slabs without surface marking.
• Quick-release valve allows instant vacuum release for rapid detachment and improved operator safety.
• Aluminum and stainless-steel construction resists corrosion and ensures long service life.
• Tool-free, large ergonomic knobs and adjustable sliding shafts for fast setup and fine alignment.
• Non-invasive clamping protects polished surfaces during handling and bonding.
• Compact, lightweight yet rigid design integrates easily into fabrication shops or on-site installations.
• Optimized compatibility with the AVPP03 Vacuum Pump for stable, automated suction control.

Specification
Metric | Imperial
Number of pads (per set): 4 (2 per tool) | 4 (2 per tool)
Pad dimensions: 380 x 80 mm | 14.96 x 3.15 in
W.L.L: 100 kg | 220 lbs

Technical specifications

• Model: WBOSSO
• Supplied as a set of two tools (left and right) and includes the AVPP03 Vacuum Pump
• Number of pads (per set): 4 (2 per tool)
• Pad dimensions: 380 x 80 mm (14.96 x 3.15 in)
• Working Load Limit (W.L.L): 100 kg (220 lbs)
• Materials: aluminum and stainless steel
• Includes dual suction pads, quick-release valve, adjustable sliding shafts and large tool-free knobs
• Suitable for granite, marble, quartz and engineered stone
