Setting tool WHVC1

General introduction

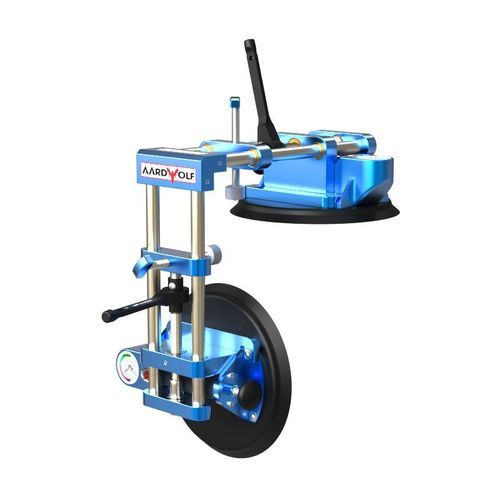

The Aardwolf Waterfall Setting Tool WHVC1 is a precision alignment tool designed for bonding waterfall panels to countertops. Ideal for granite, marble and engineered stone, it uses dual vacuum cups with built-in gauges and hand pumps to hold and align panels securely. Constructed from aluminum and stainless steel, it features adjustable sliding shafts and tool-free knobs for rapid mitered joint alignment. Compact and portable, supplied as a set of two units (left and right), suitable for workshop and on-site installation.

Key Features

• Dual Vacuum Cups — hold polished stone securely without marking.
• Integrated Gauges — allow real-time vacuum monitoring.
• Fast Pump Activation — achieves a strong vacuum in three strokes.
• Release Valves — ensure instant release with no risk of sticking.
• Durable Build — rust-resistant materials (aluminum and stainless steel).
• Tool-Free Setup — quick knobs for adjustment.
• Surface Safe — non-invasive clamping to protect finishes.
• Compact Design — portable and fits jobsite workflows.

Specifications
Metric | Imperial
Suction Cups: 4 × Ø200 mm (2 per tool) | 4 × Ø7 7/8" (2 per tool)
Working load limit: 1000 kg | 2,205 lb
Net weight: 8.1 Kg | 17.86 lbs
Gross weight: 9.2 Kg | 20.28 lbs
Packaging dimensions: L.390 x W.250 x H.380 mm | 15.35 x 9.84 x 14.96 inches

Technical specifications

• Suction Cups: 4 × Ø200 mm (2 per tool)
• Working load limit: 1000 kg (2,205 lb)
• Net weight: 8.1 Kg (17.86 lbs)
• Gross weight: 9.2 Kg (20.28 lbs)
• Packaging dimensions: L390 × W250 × H380 mm (15.35 × 9.84 × 14.96 in)
• Materials: aluminum and stainless steel
• Includes: dual vacuum cups with built-in gauges and hand pumps; supplied as a set of two tools (left and right units)
