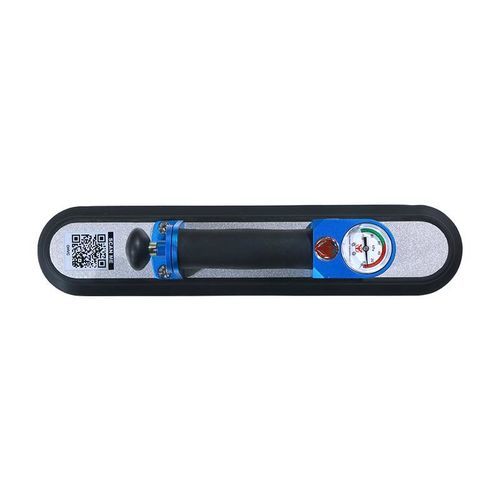

Glass plate vacuum lifting device OHVC

for stone slabsfor pipesmechanical

General
The oval hand vacuum cup lifter is constructed with an aluminum body, an ergonomic handle, an integrated vacuum gauge and a manual pump. It is designed for handling non-porous, smooth and curved surfaces such as glass panels, stone slabs and steel pipes. Vacuum is generated by repeatedly operating the hand pump and can be monitored continuously on the pressure gauge. Additional pumping can be performed at any time to maintain vacuum.

Features

• Rust-resistant components for use in wet stone-working environments.
• Supplied with a protective carrying case for transport and storage.
• Optimized for smooth and curved surfaces.
• Three-stroke hand pump produces a high vacuum level.

Specifications
Metric — Imperial
Oval pad: Length: 380 mm; Width: 80 mm — 15"; 3.1"
Working load limit: 100 kg — 220 lb
Net weight: 1.3 kg — 2.9 lb
Gross weight: 1.9 kg — 4.2 lb
Packaging dimensions: L.450xW.150xH.110 mm — 17.7"x5.9"x4.3"

Technical specifications

• Oval pad length: 380 mm
• Oval pad width: 80 mm
• Working load limit: 100 kg (220 lb)
• Net weight: 1.3 kg (2.9 lb)
• Gross weight: 1.9 kg (4.2 lb)
• Packaging dimensions: L.450xW.150xH.110 mm (17.7"x5.9"x4.3")
• Construction: Aluminum body with ergonomic handle, integrated vacuum gauge and hand pump
• Suitable for: Non-porous, smooth, curved surfaces such as glass, stone and steel pipes
• Includes: Protective carrying case
• Pumping: Hand pump (three strokes produce a high vacuum); vacuum gauge for continuous monitoring
