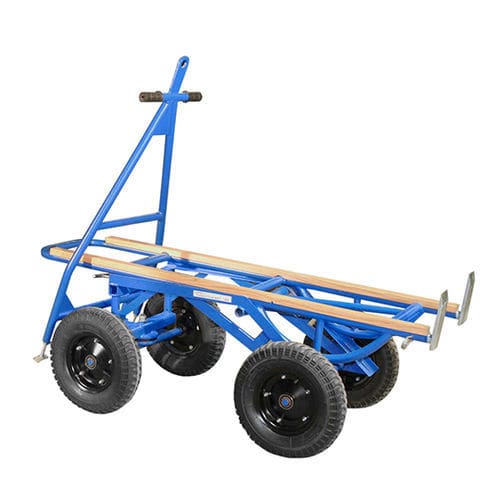

Tilt platform AHTC750

General
Four-wheel transport truck with tilting platform and ball-type turntable steering. Tilting claws and a parking brake on the tow bar provide secure handling. The wooden bearing surface locks automatically when changing between vertical and horizontal positions.

Specifications
Metric | Imperial
Long: 1400 mm | 55.1"
Track width: 580 mm | 22.8"
Blade dimension: 355x130 mm | 14''x5''
Pneumatic wheel diameter: 265 mm | 10.4"
Working load limit: 750 kg | 1653 lb
Net weight: 56.8 kg | 125 lb
Gross weight: 57 kg | 126 lb
Packaging dimension: L.1400xW.600xH.420 mm | L.55"xW.23.6"xH.16.5"

Technical specifications

• Product code: AHTC750
• Long: 1400 mm (55.1")
• Track width: 580 mm (22.8")
• Blade dimension: 355 x 130 mm (14'' x 5'')
• Pneumatic wheel diameter: 265 mm (10.4")
• Working load limit (WLL): 750 kg (1653 lb)
• Net weight: 56.8 kg (125 lb)
• Gross weight: 57 kg (126 lb)
• Packaging dimension: L.1400 x W.600 x H.420 mm (L.55" x W.23.6" x H.16.5")
