Adjustable hand truck ATD01

with brakealuminium

Overview

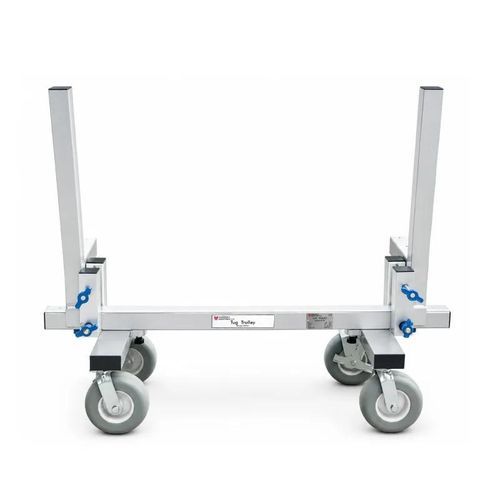

Stone & Glass Transport Tug Trolley ATT01 is designed for the safe and efficient transport of granite, marble, quartz, engineered stone, porcelain slabs, glass sheets, countertops and other flat-sheet materials across fabrication shops, warehouses and installation sites. With a Working Load Limit (WLL) of 450 kg, the trolley reduces manual handling and improves material handling efficiency for heavy and large-format sheet materials. It features a quick-adjust clamping system, four lockable swivel casters and a quick-disassembly modular design. The trolley can be used together with Aardwolf Hand Vacuum Cups and Aardwolf Sheet Material Clamps to create a more efficient workflow from lifting and transport through to installation.

Key Features

• Quick-adjust clamping system: hand-tightened locking knobs allow fast, tool-free adjustment to different material thicknesses and secure the load during transport.
• Flexible support for different materials: accommodates stone, glass and other flat-sheet materials with adjustable clamp and support positions.
• Four lockable swivel casters: heavy-duty swivel casters with integrated brakes provide smooth manoeuvring and secure positioning during loading, unloading and installation.
• Quick-disassembly modular design: major components assemble and disassemble rapidly for compact storage, easier transport and simplified maintenance.
• Compatibility with Aardwolf equipment: integrates with Aardwolf Hand Vacuum Cups and Aardwolf Sheet Material Clamps for a continuous handling workflow from lifting to installation.
• High-strength aluminium frame: provides a balance of lightweight construction and structural rigidity for industrial environments.

Specifications
Working Load Limit (WLL): 450 kg — 992 lb
Base Frame Length: 1500 mm — 59.1 in
Suitable Material Size: 1400 × 200 mm to 2500 × 800 mm — 55.1 × 7.9 in to 98.4 × 31.5 in
Wheel Diameter: Ø212 mm — Ø8.3 in
Net Weight: 44 kg — 97.0 lb
Gross Weight: 45 kg — 99.2 lb
Packaging Dimensions: 1540 × 620 × 300 mm — 60.6 × 24.4 × 11.8 in

Technical specifications

• Product Code: ATT01
• Working Load Limit (WLL): 450 kg
• Base Frame Length: 1500 mm
• Suitable Material Size: 1400 × 200 mm to 2500 × 800 mm
• Wheel Diameter: Ø212 mm
• Net Weight: 44 kg
• Gross Weight: 45 kg
• Packaging Dimensions: 1540 × 620 × 300 mm
• Frame Material: High-strength aluminium
• Features: quick-adjust clamping system; four lockable swivel casters; quick-disassembly modular design; compatibility with Aardwolf Hand Vacuum Cups and Sheet Material Clamps
