Transport dolly AST01

General

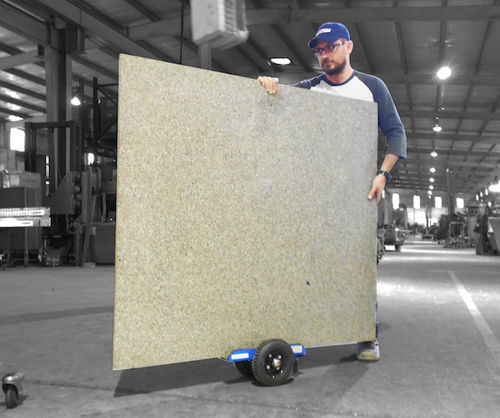

Slab-carrying trolley with solid rubber wheels and vulcanized rubber protection on the bottom, sides and top edges to minimise chipping of finished slabs. Designed for safe handling and short transfers of stone, marble, granite and engineered slabs in workshops and on construction sites. Suitable for manual loading and movement on flat surfaces.

Features

• Vulcanized rubber padding on bottom, side and top edges of the support channel to protect slab edges
• Solid rubber wheel Ø 205 mm for smooth rolling and floor protection
• Compact, lightweight construction for easy manoeuvring and storage

Specifications
Metric | Imperial
Rubber wheel: 205 mm | 8 in
Working load limit: 300 kg | 661 lb
Support plate channel: 402x80x41 mm | 15.8 in x 3 in x 1.6 in
Net weight: 8 kg | 18 lb
Gross weight: 9 kg | 20 lb
Packaging dimension: L 420 x W 270 x H 250 mm | L 16.5 in x W 10.6 in x H 9.8 in

Technical specifications

• Rubber wheel diameter: 205 mm (8 in)
• Working load limit (WLL): 300 kg (661 lb)
• Support plate channel size: 402 x 80 x 41 mm (15.8 in x 3 in x 1.6 in)
• Net weight: 8 kg (18 lb)
• Gross weight: 9 kg (20 lb)
• Packaging dimensions: L 420 x W 270 x H 250 mm (L 16.5 in x W 10.6 in x H 9.8 in)
