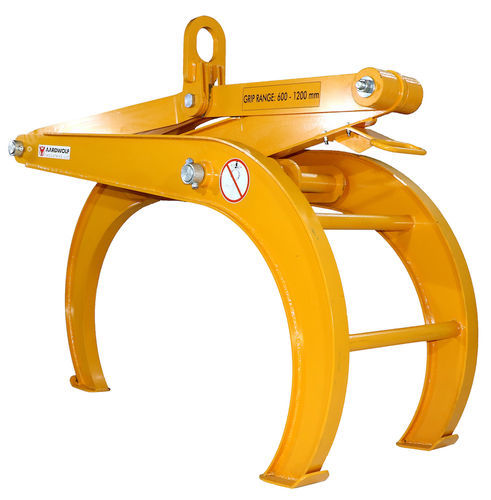

Mechanical grab ARL1200

for stonefor excavators

General

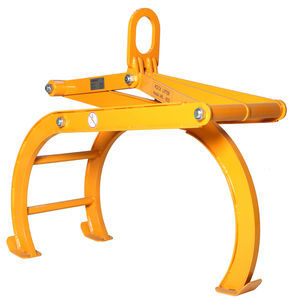

The Rock Lifter Grapple ARL1200 is an attachment designed to lift, move and place large rocks and boulders. Intended for landscapers, stonemasons and contractors, it reduces manual handling and supports safer, more efficient site operations.

Features

• Construction: Welded high‑tensile steel frame for durability under frequent use.
• Operation and maintenance: Simple mechanical design for straightforward operation and low maintenance requirements.
• Safety: Secure gripping method reduces risks associated with handling heavy, irregular materials.
• Versatility: Suitable for a wide range of rock shapes and sizes.
• Self‑adjusting grip: Jaws tighten as load increases to maintain a reliable hold.
• Actuator‑driven clamp: Integrated actuator enables automated seize and release during each cycle.

Specifications
Metric — Imperial
Working load limit: 1500 kg — 3307 lb
Grip range: 600 - 1200 mm — 23.6" - 47.2"
Net weight: 354 kg — 780 lb
Gross weight: 372 kg — 820 lb
Packaging dimensions: L.1850 x W.950 x H.1500 mm — 73" x 37" x 59"

Technical characteristics

• Product: Rock Lifter Grapple
• Model: ARL1200
• Working load limit: 1500 kg (3307 lb)
• Grip range: 600 - 1200 mm (23.6" - 47.2")
• Net weight: 354 kg (780 lb)
• Gross weight: 372 kg (820 lb)
• Packaging dimensions: L.1850 x W.950 x H.1500 mm (73" x 37" x 59")
• Material: High‑tensile steel
• Self‑adjusting grip mechanism that tightens with load
• Actuator‑equipped automated clamp (seize/release)
• Designed for low maintenance and improved operator safety
