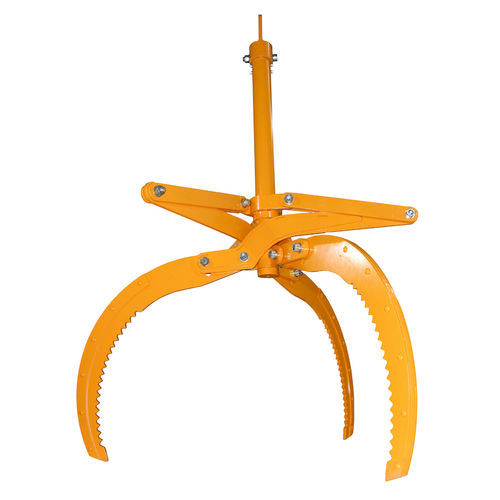

Mechanical load lifting grab ASG

for stone

General
Aardwolf Stone Grapple is a mechanical attachment for handling, moving and loading large irregular stones, rocks and boulders onto trucks or industrial carriers. The unit features a three-arm (3-point) design to provide a stable lift of irregularly shaped heavy loads with a single operator. The lifting tongs operate fully automatically via an internally housed actuator and require no external hydraulics. Three serrated tines contact the load and ensure consistent grip and stable lift cycles. To operate, the operator lowers the grapple onto a stone, the internal actuator engages to lift, and after placement it releases and resets for the next cycle.

Features

• 3-point mechanical design for stable lifting
• No external hydraulic supply required; automatic internal actuator
• Serrated tines for enhanced grip on irregular surfaces
• Wide jaw opening to accommodate large boulders and debris

Specifications
Metric | Imperial
Working load limit: 2000 kg | 4409 lb
Grip range: 350 - 1200 mm | 14" - 47"
Net weight: 158 kg | 348 lb
Gross weight: 176 kg | 388 lb
Packaging dimensions: L1100 x W620 x H400 mm | 43.3" x 24.4" x 15.7"

Technical characteristics

• Working load limit (WLL): 2000 kg (4409 lb)
• Grip range: 350 - 1200 mm (14" - 47")
• Net weight: 158 kg (348 lb)
• Gross weight: 176 kg (388 lb)
• Packaging dimensions: 1100 x 620 x 400 mm (43.3" x 24.4" x 15.7")
• Three-arm 3-point layout for stable handling of irregular loads
• Fully automatic lifting tongs with internally housed actuator; no external hydraulics needed
• Serrated tines for secure contact and repeatable lift cycles
