Forklift truck jib crane SBH02

lifting

General

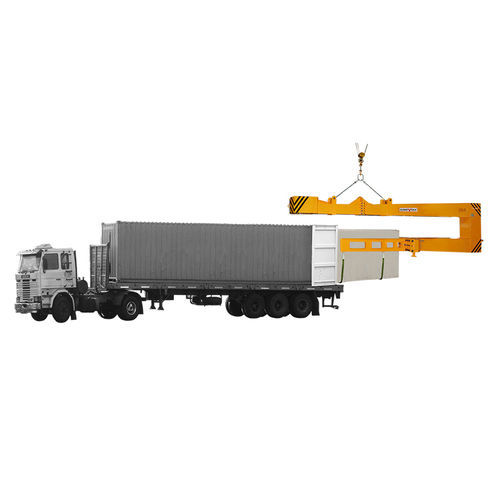

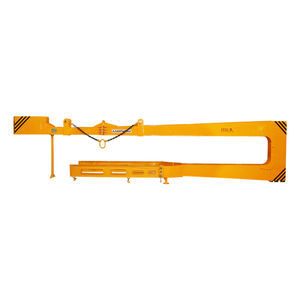

The SBH02 slab bundle handler is a crane attachment for extracting and lifting crated marble and granite slab bundles from closed-top containers. It enables safe handling of stone slab bundles and allows an existing crane to perform many tasks typically done by a forklift. Recommended for gantry cranes and mobile cranes with a 5,000 kg capacity or greater.

Specifications
Metric / Imperial
Working load limit (WLL): 5000 kg / 11023 lb
Net weight: 3200 kg / 7055 lb
Gross weight: 3210 kg / 7077 lb
Packaging dimensions (A): 5300 x 1030 x 1800 mm / 208.7 x 40.6 x 71 in
Packaging dimensions (B): 2540 x 520 x 650 mm / 100 x 20.5 x 25.6 in

Characteristics / Technical specifications

• Product code: SBH02
• Type: slab bundle handler (crane attachment)
• Main use: extraction and lifting of crated marble and granite slab bundles from closed containers
• Working load limit: 5000 kg (11023 lb)
• Net weight: 3200 kg (7055 lb)
• Gross weight: 3210 kg (7077 lb)
• Packaging dimensions A: 5300 x 1030 x 1800 mm
• Packaging dimensions B: 2540 x 520 x 650 mm
• Compatibility: recommended for gantry cranes (≥ 5 000 kg) and suitable for mobile cranes
