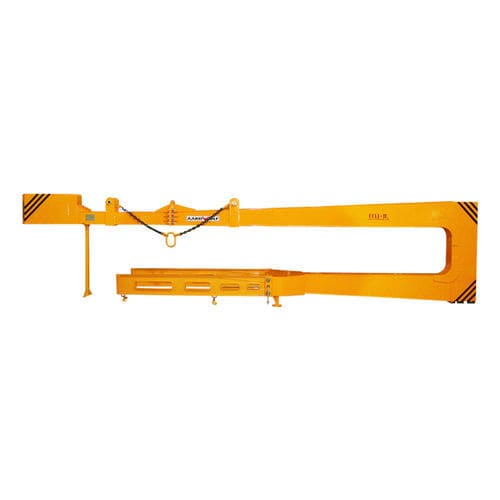

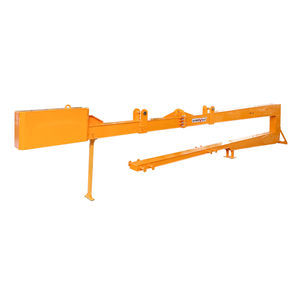

Forklift truck jib crane SBH01

lifting

Overview

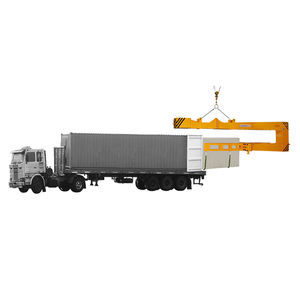

The Slab Bundle Handler is a crane attachment designed to extract and lift crated marble and granite slab bundles from closed-top containers. It enables secure handling of slab bundles, improves load handling efficiency and operator safety, and allows a crane to perform many functions typically carried out by a forklift. It is optimally used on gantry cranes with a 3 t working load limit or greater and can also be fitted to mobile cranes.

Application
Designed as a crate extraction unit, the handler is intended for loading and unloading operations of stone slab bundles in quarries, fabrication yards, ports and stone-processing plants. It provides stable engagement with packaged slabs and reduces manual handling during container extraction.

Specifications
Metric — Imperial
Working load limit: 3000 kg — 6614 lb
Net weight: 2000 kg — 4409 lb
Gross weight: 2005 kg — 4420 lb
Packaging dimensions: L.5270 x W.920 x H.1600 (A) mm; L.2520 x W.450 x H.650 (B) mm — 207.5 x 36.2 x 63 in; 99.2 x 17.7 x 25.6 in

Technical characteristics

• Product code: SBH01
• Intended use: extraction and lifting of crated marble and granite slab bundles from closed-top containers
• Compatibility: gantry cranes with ≥ 3 t working load limit and mobile cranes
• Benefit: secures slab bundles for safer, more efficient container handling and reduces need for forklift intervention
