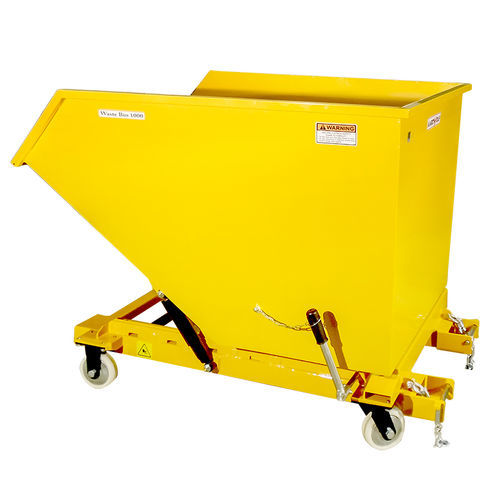

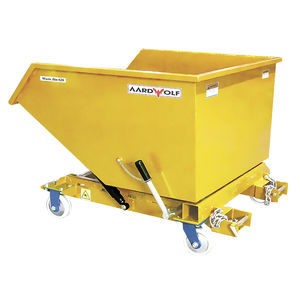

Steel waste bin WB1000PC

mobilefor forklift trucks

General
Manufactured from 3 mm plate with a reinforced bottom to extend service life. The bin is emptied by the forklift operator pulling a release rope from the driver's seat. A custom-built shock absorber prevents impact forces being transmitted to the forklift during emptying. Powder coat finish.

Options include

• Wheels
• Air shock absorbers
• Drain cock and strainer

Specifications
Metric — Imperial
Model: WB1000PC
Working load limit: 1500 kg — 3307 lb
Capacity: 1.06 m³ — 37.4 ft³
Net weight: 221 kg — 487 lb
Gross weight: 222 kg — 489 lb
Package dimension: 1540 x 1200 x 1220 mm — 60.6 in x 47.2 in x 48 in

Features / Technical specifications

• Material thickness: 3 mm plate
• Finish: Powder coat paint
• Reinforced bottom for extended service life
• Release mechanism: forklift-activated draw rope from driver's seat
• Shock absorber: custom-built to prevent transmission of impact forces to forklift
• Low-profile design for access in confined areas
• Optional accessories: wheels; air shock absorbers; drain cock and strainer
• Net weight: 221 kg (487 lb)
• Gross weight: 222 kg (489 lb)
• Package dimensions: 1540 x 1200 x 1220 mm (60.6 in x 47.2 in x 48 in)
• Product code: WB1000PC
