Steel self-dumping hopper ADBB-2000

galvanised steelfor wasteindustrial waste

General

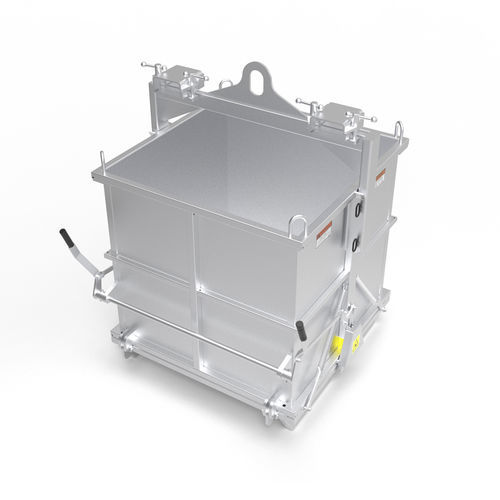

The Aardwolf Drop Bottom Bin ADBB-2000 is a heavy-duty steel waste bin fabricated from 3 mm plate and reinforced for site use. It is designed to be handled by a forklift or an overhead crane and to transport solid waste to a dump point where contents can be emptied into larger bins or dump trucks. Complete emptying is achieved by pulling the draw handle to release the floor; the bottom relocks automatically when lowered to the ground.

Features

• Sheet metal sides and sheet metal base manufactured from 3 mm steel plate.
• Hot-dip galvanized finish for corrosion protection.
• Fork pockets for forklift handling.
• Crane lugs for overhead crane use.

Specifications
Metric — Imperial
Working load limit: 1500 kg — 3307 lb
Fork pocket (Width x Height): 160 x 70 mm — 6.3 in x 2.8 in
Fork pocket to fork pocket: 1063 mm — 41.9 in
Net weight: 366 kg — 807 lb
Gross weight: 367 kg — 809 lb
Packaging dimensions: 1300 x 1300 x 1720 mm — 51.2 in x 51.2 in x 67.7 in

Technical characteristics

• Product code: ADBB-2000
• Material and thickness: 3 mm steel plate, reinforced construction.
• Emptying mechanism: draw-handle operated drop bottom for complete discharge; automatic locking on lowering.
• Suitable for handling all types of solid waste products on industrial sites and construction areas.
• Handling methods: forklift pockets and crane lugs for overhead crane handling.
• Finish: hot-dip galvanised.
• Working load limit: 1500 kg (3307 lb).
• Typical use: transport and emptying of site waste into larger bins or dump trucks.
