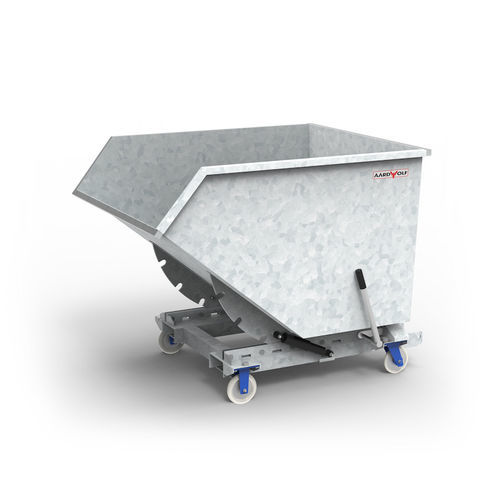

Galvanised steel self-dumping hopper WB620G

steelfor wasteindustrial waste

General
Manufactured from 3mm steel plates with a reinforced bottom for extended service life. The bin features a forklift-operated release mechanism activated via a pull rope, allowing operators to empty the bin from their seat. A custom-built shock absorber reduces impact forces on the forklift during dumping. The unit is finished with a galvanised coating for corrosion resistance.

Applications

• Industrial waste collection and transport
• Recycling and materials-handling areas
• Construction and demolition sites

Options include

• Wheels
• Air shocks
• Drain cock and strainer

Specifications
Working load limit: 1000 kg (2204 lb)
Net weight: not specified
Gross weight: not specified
Package dimensions: not specified

Technical details

• Product code: WB620G
• Material: 3mm steel plates
• Finish: Galvanised coating
• Reinforced bottom for extended lifespan
• Release mechanism: forklift-activated via pull draw rope
• Safety: custom-built shock absorber to minimise impact on forklift during emptying
• Available options: Wheels; Air shocks; Drain cock and strainer
• Working load limit: 1000 kg (2204 lb)
