Handling rack FAF1600

General

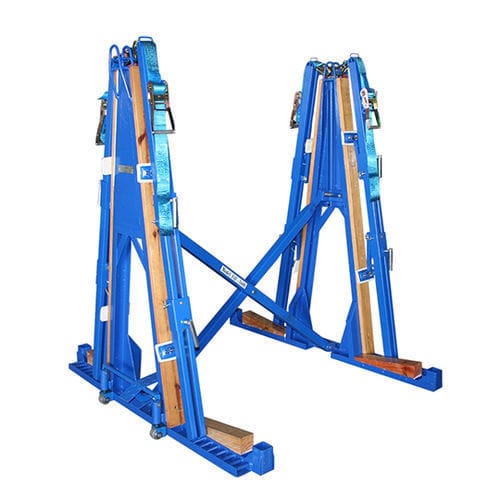

The Aardwolf Folding 'A' Frame FAF1600 is a foldable transport frame designed for safe handling and transport of granite and marble slabs. The frame secures loads independently on each side using integrated vertical locking bars combined with ratchet locking straps. The unloaded frame folds by withdrawing two spring-loaded pins from the cross braces and lowering the three wheels at one end with a cam lever; the lowered wheels allow positioning on a truck tray or manual movement within a facility.

Features

• Bolt holes in the base for optional securing to a vehicle
• Rubber pads mounted on adjustable cleats to protect and secure stone slabs
• Large hand-tightened wing nuts for quick cleat adjustment
• Integrated vertical locking bars with ratchet locking straps (load secured independently per side)
• Powder-coated finish for corrosion protection
• Foldable design with spring pins and cam-lever operated wheels for handling and storage

Specifications
Metric | Imperial
Width of slab storage base area on each side: 386 mm | 15.2"
Working load limit per side: 3000 kg | 6614 lb
Total working load limit: 6000 kg | 13228 lb
Net weight: 223 kg | 492 lb
Gross weight: 235 kg | 518 lb
Packaging dimension: L.1650 x W.500 x H.1870 mm | L.65" x W.19.7" x H.73.6"

Technical specifications

• Model: FAF1600
• Product type: Folding 'A' Frame for stone slab transport
• Slab base width per side: 386 mm (15.2")
• Working load limit per side: 3000 kg (6614 lb)
• Total working load limit: 6000 kg (13228 lb)
• Net weight: 223 kg (492 lb)
• Gross weight: 235 kg (518 lb)
• Packaging dimensions: 1650 x 500 x 1870 mm (65" x 19.7" x 73.6")
• Finish: Powder-coated
• Locking: Integrated vertical locking bars and ratchet locking straps
• Protection: Rubber pads on adjustable cleats tightened with large wing nuts
• Mobility/folding: Two spring-loaded pins for folding; three wheels lowered by cam lever for positioning or manual movement
• Optional securing: Bolt holes in base for vehicle attachment
