Handling rack FAF1800

General

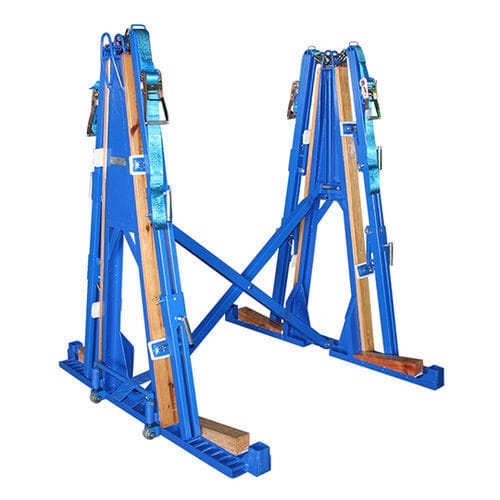

The Aardwolf Folding A-frame transport rack is designed for safe handling and transport of stone slabs (granite, marble). Its integrated vertical locking bars and ratchet locking straps secure loads independently on each side to reduce risk of movement or damage during transit. The unloaded frame folds quickly by withdrawing two spring-loaded pins from the cross braces and lowering three wheels at one end using a cam lever, allowing positioning on a truck bed or manual movement inside a workshop.

Features

• Independent vertical locking bars on each side with adjustable rubber pads mounted on cleats to protect stone surfaces.
• Ratchet locking straps secure load at the top; large hand-tightened wing nuts fix cleats to locking bars.
• Three retractable wheels operated by a cam lever for easy maneuvering and loading onto vehicles.
• Bolt holes in the base allow optional anchoring of the frame to a vehicle.
• Durable powder-coated finish for corrosion protection.

Specifications
Metric | Imperial
Width of slab storage base area on each side: 352 mm | 13.9"
Working load limit per side: 3000 kg | 6614 lb
Total working load limit: 6000 kg | 13228 lb
Net weight: 243 kg | 536 lb
Gross weight: 256 kg | 564 lb
Packaging dimension: L.1600 x W.550 x H.2110 mm | L.63" x W.21.7" x H.83"

Technical characteristics / Applications

• Suitable for transport and storage of granite and marble slabs in industrial settings.
• Type: Folding A-frame transport rack (slab carrier).
• Model / series: FAF-1850 (FAF series) — manufacturer: Aardwolf.
• Handling: foldable design with spring pins and cam-lever wheel lowering for compact storage and truck loading.
• Safety: independent side locking system with ratchet straps and adjustable rubber pads to minimize slab damage.
